Product Details:
|
| Main Component: | 95% Al2O3 | Density: | ≥3.7g/cm3 |
|---|---|---|---|
| Dielectric Strength: | 9.0 εr(20℃ ,1MHz) | Water Absorption: | 0 |
| Specific Heat Capacity: | 0.78x10^3 J/(kg.K) | Thermal Shock Resistance: | 250℃ Tc |
| High Light: | alumina ceramic radial bearing,alumina ceramic stick |
||
Alumina Ceramic shafts and Bearings Alumina Rod 95% Alumina Shield Pump Circulating Pump Part Direct Current Rotor

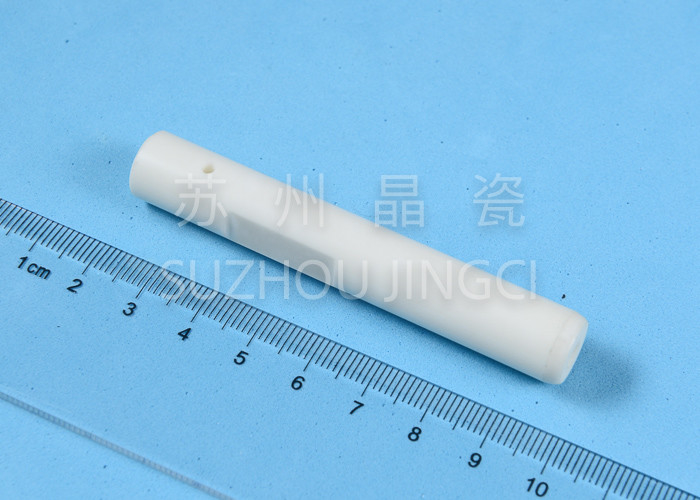

The Dimensions of the ceramic shaft is φ12*L80.5mm, is made from 95% Alumina or Aluminum Oxide, Al2O3. And its color white after sintering.
Alumina ceramic shafts have the properties below:
Suzhou Jingci Super Hard Materials Co.,Ltd, (here after reffered to as Jingci and whose website is www.fineceram.com) specializes in production, research and development of parts made of alumina(AL203), zirconia(ZrO2), silicon carbide(SIC), silicon nitride(Si3N4), as well as customized products, among those the competitive products are ceramic pump shafts, ceramic pump bearings, ceramic pump plungers, ceramic pumps etc.
| Machining Accuracy of Ceramic Shafts | ||||||
| Dimension Range (mm) |
OD tolerance (mm) |
straightness (mm) |
Roundness (mm) |
Length tolerance (mm) |
Roughness (mm) |
Straightness (mm) |
| Outer Diameter 3-230 |
0.000-0.015 | 0.005 | 0.005 | ±0.05 | Ra0.15-0.25 | 0.005 |
| Inner Diameter 1-190 |
||||||
| Length 5-400 |
||||||
