Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-11
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 15000pcs per 45 days

High Alumina Ceramic Tube Alumina Sleeves High Temperature Resistance

Description
Main Component: 99% Al2O3 Gross Density: 3.8-3.9g/g/cm^3
Compressive Strength: 3400Mpa (Psix103) Vickers Hardness: 1600-2200 HV0.5
Thermal Expanding Coefficient: 7.8 (1x10^-6/℃) Wear Resistance: G/cm^2 ≤0.1
High Light:

aluminum oxide ceramic

,

engineering ceramics

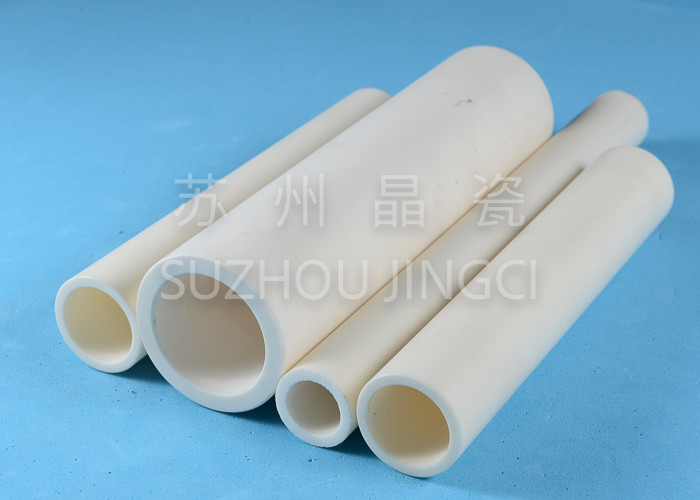

Alumina Ceramic Parts Ceramic Tube Alumina Sleeves High Temperature Resistance Corrosion Resistance Mechanical Part



Because of their outstanding properties, alumina ceramics parts are widely used in various fields and industries. Alumina ceramic tubes, which has superb performances in electrical insulation, high chemical resistance, low thermal expansion, and wear resistance, are usually used in machines, devices or industrial stoves, normally as components like injector tubes and insulator



Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci and whose website is www.fineceram.com) specializes in precision ceramics for more than 20 years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci owns whole production lines from shaping to machining and its professional staff are skilled at shaping of green parts, sintering and machining, and accomplish a good machining precision.

Jingci will make continuous efforts to provide fine ceramic solution for customers around the world, whose visit, guidance and win-win cooperation are warmly welcome



Advantages of alumina ceramic tubes:

1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). High hardness





Porperty Data:

Al2O3 content (%) 95% 99%
Density (g/cm3) 3.7 3.9
Bending Strength (Mpa) 364 450
Hot coefficient of expansion (20O°C-80O°C) 7.6 8
Thermal Conductivity (W/(m.R)) 20 35
Dielectric Strength (kv/mm) 11 12
Working Temperature ℃ (Long time use) 1600 1750
Water Absorption (%) <0.2 <0.1-0.2
