Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-18
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 20000pcs per 45 days

Friction Resistance Alumina Ceramic Parts , Zirconia Ceramic Driven Shaft

Description
Main Ingredient: Zirconium Density: 6g/cm^3
Color: White Maximum Operating Temperature: 1200 ℃
Coefficient Of Linear Expansion (20–400°C): 10 10^–6/℃ Flexural Strength: 1000 Mpa (Psi*103)
High Light:

zirconia alumina ceramic

,

aluminum oxide ceramic

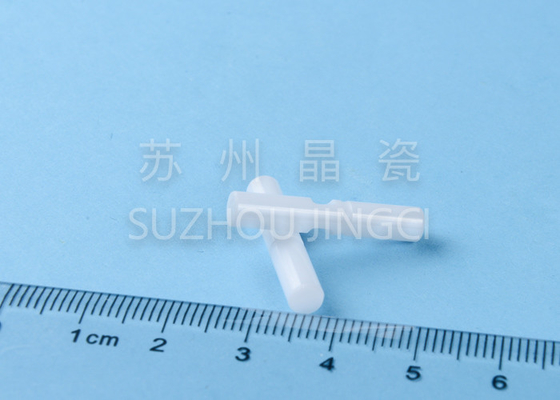

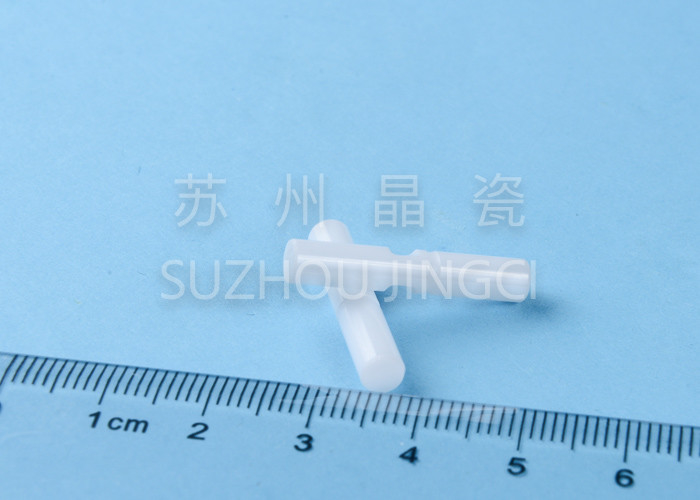

Alumina Ceramic Parts Zirconia Ceramic Driven Shaft Ceramic Rod Impeller Pump Component Friction Resistance



Part name: driven shafts

Specifications: φ4.5mm*L30mm

Material: Yttria-stabilized zirconia (ZrO2Y)

Properties:

Yttria-stabilized zirconia has superior mechanical strength, Vickers hardness, compressive strength, fracture toughness, lower thermal conductivity (only 4 W/m.k at room temperature) than alumina ceramic parts, great flexural strength more than 2 times higher than alumina ceramic parts, as well as nearly zero dielectric constant. Accordingly, it is wear resistant, and high-pressure resistant and insoluble in weak acid or alkaline solution, let alone normal water or medical fluid.

Yttria-stabilized zirconia provides such benefits as substantial increase shaft life by reducing abrasion, significant reduction in noise (in most cases), USDA approval for contact with food products.

Application:

it is widely applied as pump components instead of metal shafts in variant pumps like micro pump, shield pump, circulating pump, centrifugal pump, impeller pump, magnetic drive pump, ground source heat pump, aquarium pump, fountain pump, mechanical components in aircraft turbines and automobile industry etc.



FAQ:

1. Monthly Capacity: 20000 pcs each per 45 days;
2. Material: OEM or as per your suggestion;
3. Incoterm: FOB, CFR, CIF;
4. Delivery Cost: depending on the destination port;
5. Shipment: by sea, by air, by courier, by post, etc.



More information please contact +86 0512 66956977 or Mobile phone +86 18550005262, or visit Suzhou Jingci’s website www.fineceram.com
