White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength

White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength
White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength

Large Image :  White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength

Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-29
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1500pcs per 30 days

White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength

Description
Main Component: Zirconium Color: White
Thermal Conductivity: 4 W/mK Density: 6g/cm^3
Thermal Shock Resistance: 270℃ Tc Volume Resistivity: >10^15 100°
High Light:

zirconia alumina ceramic

,

aluminum oxide ceramic

Ceramic High-pressure Valve Seat White Zirconia Food and Beverage Processing Machinery Anti-corrosion



The part name is high-pressure seat and its specification is φ40*20*L26. It is made from yttria-stabilized zirconia (YSZ), which is a ceramic in which the cubic crystal structure of zirconium dioxide is made stable at room temperature by an addition of yttrium oxide.

After shaping and sintering, Yttria-stabilized zirconia acquires properties like good bending strength, high toughness, excellent surface finishing, superior wear resistance and outstanding corrosion resistance, as well as good flexural strength and compressive strength. Since they have these properties, zirconia ceramics, they have obtained a permanent place in food and beverage industry. For example, in a homogenizer machine, big molecule is pulverized into smaller ones under conditions of high pressure, high speed. Zirconia parts work withstands the collision and high pressure for a long time without damages.

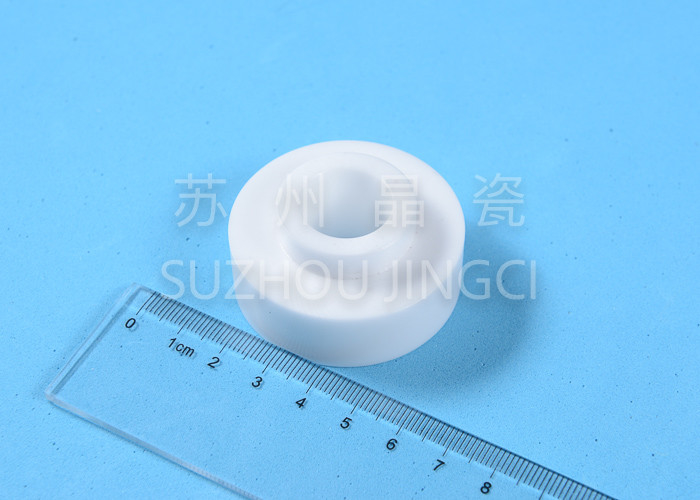

White Zirconia Ceramic High Pressure Valve Seat Good Bending Strength 0



Suzhou Jingci Super Hard Material is good at making such parts shown in the picture with precise dimensions and high qualities, as shown in the below table

Jingci's Machining Accuracy
OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roundness
(mm)
ID tolerance
(mm)

0-0.015 0.02 0.005 0.02 0.05 0.005 0.02





Suzhou Jingci owns more than ten whole lines from mold shaping to complete machining, plus skillful company staff, can provide satisfying service for customers who have such demand. Please contact Suzhou Jingci at +86 66956977, +86 18550005262, or visit its website www.fineceram.com for more information.
