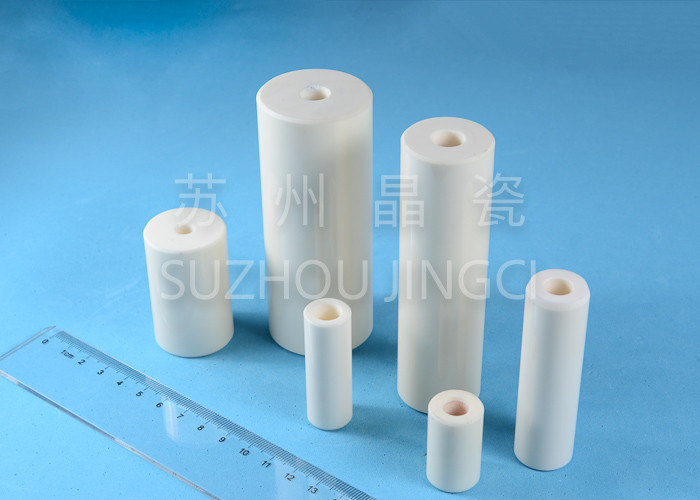

Metering Pump Al2O3 Alumina 99 Zirconia Plunger

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Metering Pump Al2O3 Alumina 99 Zirconia Plunger

Metering Pump Al2O3 Alumina 99 Zirconia Plunger
Metering Pump Al2O3 Alumina 99 Zirconia Plunger

Large Image :  Metering Pump Al2O3 Alumina 99 Zirconia Plunger

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: Zirconia Plunger
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

Metering Pump Al2O3 Alumina 99 Zirconia Plunger

Description
Name: Zirconia Plunger Units: 99
Density: 3.9 G/cm3 Usage: Metering Pump
Water Absorption: 0% Vickers Hardness: 13Gpa
Flexural Strength (20°C): 380Mpa Material: Al2O3 Alumina
High Light:

99 Zirconia Plunger

,

Al2O3 Zirconia Plunger

,

Al2O3 piston plunger

99% Al2O3 Ceramic Plungers Piston Pump Component Agricultural Pump High Pressure Cleaning Pump



Introduction



Zirconia Ceramic The production of zirconia ceramic requires the preparation of high purity, fine dispersion, ultrafine particles and narrow particle size distribution. Zirco-

nia ultrafine powders are prepared by many meth-

ods, such as chlorination and thermal decomposi-tion, alkali metal oxidation, lime melting. plasma arc, precipitation, colloid, hydrolysis, spray pyrolysis, etc.



Application:



Electrical industry, Electric heating industry, Electronics Industry, auto industry,Petroleum industry, Textile industry, Lighting industry, Metallurgical industry.



Parameters



Properties Units Al2O3 99%
Mechanical Density g/cm3 3.9
  Color -- Ivory or white
  Water Absorption % 0
  Vickers Hardness Gpa 13
  Flexural Strength (20°C) Mpa 380
  Compressive Strength (20°C) Mpa 3000
Thermal Thermal Conductivity (20°C) W/m.K 25~35
  Thermal Shock Resistance (20°C) ΔT(C) 200
  Maximum Use Temperature °C 1700
Electrical Volume Resistivity (25°C) Ω.cm >1014



About us



Suzhou Jingci Super Hard Materials Co., Ltd, (whose website is www.fineceram.com) specializes in plunger/piston production for more than 18 years and has rich experience in designing and developing technical ceramic solutions for a wide variety of applications. Now, Jingci has been an outstanding supplier of ceramic parts for famous international companies like Karcher, AR Pumps, Leuco S.p.A, as well as other foreign pump manufacturers.
