Agricultural Irrigation Pump φ18mm Alumina Ceramic Shaft

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

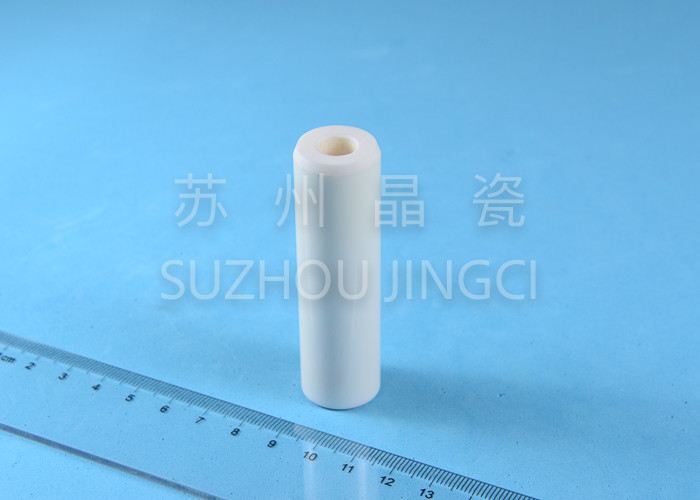

Agricultural Irrigation Pump φ18mm Alumina Ceramic Shaft

Agricultural Irrigation Pump φ18mm Alumina Ceramic Shaft
Agricultural Irrigation Pump φ18mm Alumina Ceramic Shaft

Large Image :  Agricultural Irrigation Pump φ18mm Alumina Ceramic Shaft

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: Alumina Ceramic Shaft
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

Agricultural Irrigation Pump φ18mm Alumina Ceramic Shaft

Description
Name: Alumina Ceramic Shaft Usage: Agricultural Irrigation Pump
Density: 3.9 G/cm3 Size: Φ18mm
Water Absorption: 0% Vickers Hardness: 13Gpa
Flexural Strength (20°C): 380Mpa Compressive Strength (20°C): 3000Mpa
High Light:

Alumina Ceramic Shaft

,

Φ18mm Ceramic Shaft

,

Φ18mm alumina tube

99% Al2O3 Piston Alumina Ceramic Plunger φ18mm for Agricultural Irrigation Pump



Ceramic material composition:


· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)

The properties of ceramic plunger:
·Excellent physical & chemical stability ·High temperature resistance
·Excellent wear & pressure & corrosion& insulation resistance and thermal conductivity.



Parameters



Properties Units Al2O3 99%
Mechanical Density g/cm3 3.9
  Color -- Ivory or white
  Water Absorption % 0
  Vickers Hardness Gpa 13
  Flexural Strength (20°C) Mpa 380
  Compressive Strength (20°C) Mpa 3000
Thermal Thermal Conductivity (20°C) W/m.K 25~35
  Thermal Shock Resistance (20°C) ΔT(C) 200
  Maximum Use Temperature °C 1700
Electrical Volume Resistivity (25°C) Ω.cm >1014



Usually alumina ceramic plungers use alumina material with purity 99%, whose performance and economic efficiency have been proven in application. Alumina or zirconia ceramic pistons and plungers are widely applied in high-pressure cleaning machine, plant equipment protection, food and beverage processing plant. Pistons and plungers with diameters from 3mm up to 240mm can be produced precisely. In addition, their polished surface with roughness Ra0.25 ensures the long service life of the equipment or apparatus.



About Us



Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci and whose website is www.fineceram.com) has been working on production of ceramic pistons and pistons for nearly 18 years and has rich experience in producing and quality control, and has been an outstanding supplier for famous international customers like Karcher, Wilo and AR pump.
