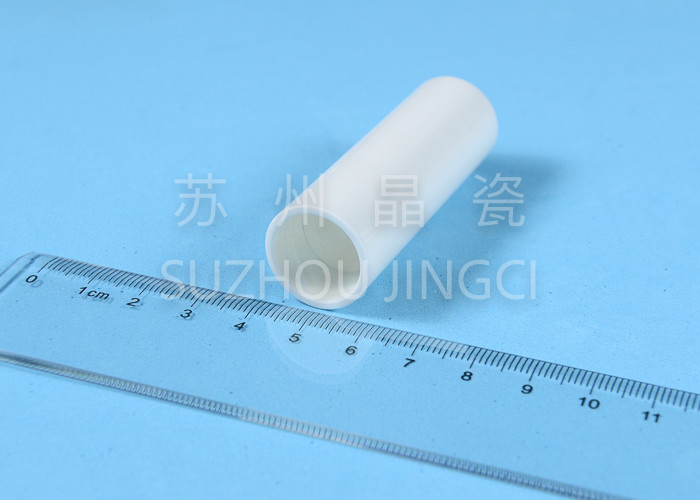

99% Alumina Ra0.25 High Temperature Ceramic Bushings Tube

99% Alumina Ra0.25 High Temperature Ceramic Bushings Tube
99% Alumina Ra0.25 High Temperature Ceramic Bushings Tube

Large Image :  99% Alumina Ra0.25 High Temperature Ceramic Bushings Tube

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-17
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000pcs per 30 days

99% Alumina Ra0.25 High Temperature Ceramic Bushings Tube

Description
Material: Zirconium Color: White
Density: 6g/cm3 Compressive Strength: 3900Mpa (Psix103)
Vickers Hardness: 1300 HV0.5 Thermal Conductivity: 4 W/mK
Shape: Round
High Light:

0.02mm High Temperature Ceramic Bushings

,

ra0.25 high temperature ceramic bushings

,

99% alumina ceramic tube

Alumina Ceramic Parts Zirconia Ceramic Bushing zirconia Sleeves Machinery Component Abrasion Resistance



Part Name: 99% Alumina Ra0.25 High Temperature Ceramic Bushings Tube

Density: 6g/cm3

Color: White



Features:


1. A Variety Of Specifications Available
2. High Temperature Resistance
3. Low Thermal Conductivity
4. Chemical Inertness
5. Good Wear Resistance
6. High Electrical Insulation



Wear protection for plant equipment is very important, because it has a direct impact on the cost-effectiveness of production. In many industries, there is restrict demands on the performance of abrasion resistance of some mechanical components. Linings or bushings made from technical ceramics reduces the wear and corrosion between mechanical components to the lowest extent. They ensure longer service life, are lower in maintenance and are thus more economical overall. Usually, these mechanical linings or bushings are made from zirconia oxide (zirconia), because it has remarkable properties of strength, hardness, wear resistance, elasticity modules, flexural strength and fracture toughness. In addition, it can withstand high temperature up to 1200 ℃ for long periods under great mechanical stress. Typically the wear resistant parts made from zirconia are applied in areas like volatile chemical solutions transportation, jet and diesel engine components, containers for molten metals, high speed cutting tools, high wear components, transistor insulators, dental implants, bearing balls, pump seals, and ball valves.





Jingci's Machining Accuracy
OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)

0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02
