3900Mpa 1200 ℃ Sleeves Zirconia Ceramic Bushings

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

3900Mpa 1200 ℃ Sleeves Zirconia Ceramic Bushings

3900Mpa 1200 ℃ Sleeves Zirconia Ceramic Bushings
3900Mpa 1200 ℃ Sleeves Zirconia Ceramic Bushings

Large Image :  3900Mpa 1200 ℃ Sleeves Zirconia Ceramic Bushings

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-17
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000pcs per 30 days

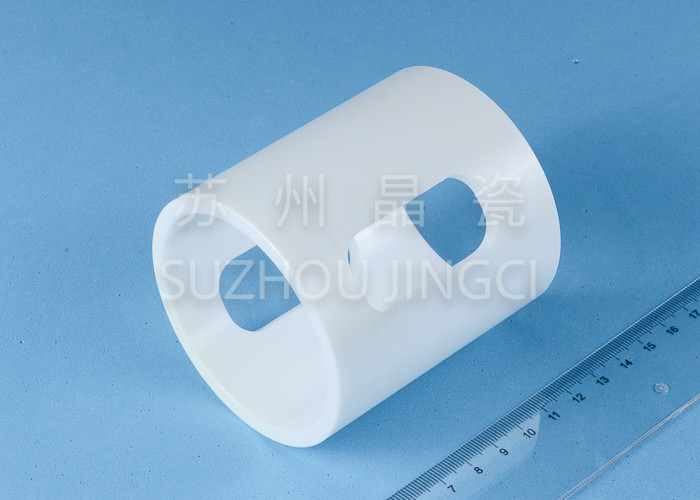

3900Mpa 1200 ℃ Sleeves Zirconia Ceramic Bushings

Description
Material: Zirconium Color: White
Density: 6g/cm3 Compressive Strength: 3900Mpa (Psix103)
Vickers Hardness: 1300 HV0.5 Thermal Conductivity: 4 W/mK
High Light:

Zirconia Ceramic Bushings

,

3900Mpa Ceramic Bushings

,

1200 ℃ Ceramic Bushings

Alumina Ceramic Parts Zirconia Ceramic Bushing zirconia Sleeves Machinery Component Abrasion Resistance



Wear protection for plant equipment is very important, because it has a direct impact on the cost-effectiveness of production. In many industries, there is restrict demands on the performance of abrasion resistance of some mechanical components. Linings or bushings made from technical ceramics reduces the wear and corrosion between mechanical components to the lowest extent. They ensure longer service life, are lower in maintenance and are thus more economical overall. Usually, these mechanical linings or bushings are made from zirconia oxide (zirconia), because it has remarkable properties of strength, hardness, wear resistance, elasticity modules, flexural strength and fracture toughness. In addition, it can withstand high temperature up to 1200 ℃ for long periods under great mechanical stress. Typically the wear resistant parts made from zirconia are applied in areas like volatile chemical solutions transportation, jet and diesel engine components, containers for molten metals, high speed cutting tools, high wear components, transistor insulators, dental implants, bearing balls, pump seals, and ball valves.





Jingci's Machining Accuracy
OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)

0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02





We Have A Full Service Include Ceramic Forming,Mold Design And Development,Precision Machining And Precision Detection Technology, And Our Technician Have Many Years Of Experience In Ceramic Processing. We Can Provide A Full Set Of Ceramic Solutions For Customers, And Can Make Different Kinds Of Ceramic Products According To Customer'S Special Request.
