Automobile Zirconia Alumina Ceramic Bearings And Shafts φ3.2 REACH Certificate

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Automobile Zirconia Alumina Ceramic Bearings And Shafts φ3.2 REACH Certificate

Automobile Zirconia Alumina Ceramic Bearings And Shafts φ3.2 REACH Certificate
Automobile Zirconia Alumina Ceramic Bearings And Shafts φ3.2 REACH Certificate

Large Image :  Automobile Zirconia Alumina Ceramic Bearings And Shafts φ3.2 REACH Certificate

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-1-30
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 45 days

Automobile Zirconia Alumina Ceramic Bearings And Shafts φ3.2 REACH Certificate

Description
Material: Yttria-stabilized Zirconia Density: 6g/cm^3
Thermal Conductivity: 4 W/mK Vickers Hardness: 1300 HV0.5
Maximum Operating Temperature: 1200 ℃ Thermal Shock Resistance: 270℃ Tc
High Light:

zirconia ceramic shaft

,

alumina ceramic stick

Ceramic Bearings and Shafts Zirconia Ceramic Shaftφ3.2 ZrO2 Rod Automobile Component Wear Resistance

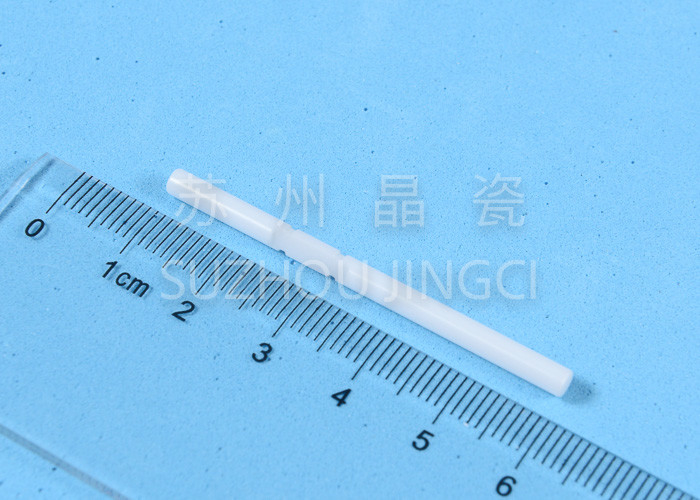

The part name is a zirconia ceramic shaft, whose specifications is φ3.2mm*L50mm, on which a terrace and two grooves are machined. It is made of Yttria-stabilized zirconia materials, which provides many benefits after sintering like substantial increase shaft life by reducing abrasion, significant reduction in noise (in most cases), USDA approval for contact with food products. Although zirconia ceramic parts are more expensive than normal alumina ceramics, it is a better option than alumina ceramic parts.



Suzhou Jingci Super Hard Materials Co., Ltd,  specializes in precision ceramics for more than 20 years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci owns whole production lines from shaping to machining and its professional staff are skilled at shaping of green parts, sintering and machining, and a good machining precision is shown below:

Machining Accuracy of Ceramic Shafts
Dimension
Range (mm)
OD tolerance
(mm)
straightness
(mm)
Roundness
(mm)
Length tolerance
(mm)
Roughness
(mm)
Straightness
(mm)
Outer Diameter
3-230
0.000-0.015 0.005 0.005 ±0.05 Ra0.15-0.25 0.005
Inner Diameter
1-190
Length
5-400

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 20-50 days, please confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
