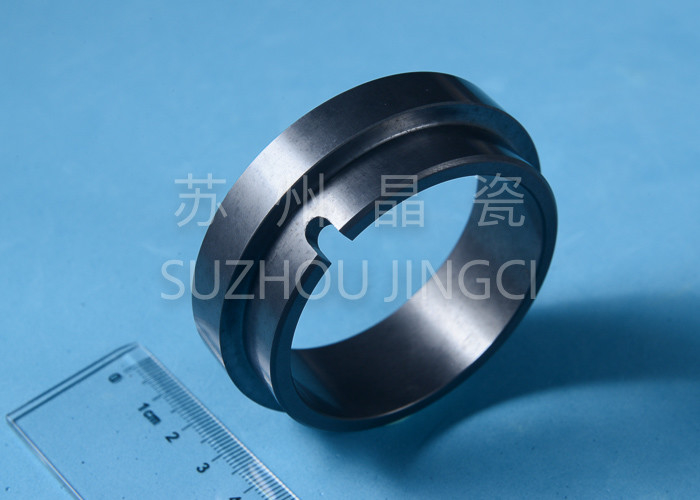

Industrial Silicon Carbide Ceramic Ring Low Density High Hardness

Industrial Silicon Carbide Ceramic Ring Low Density High Hardness
Industrial Silicon Carbide Ceramic Ring Low Density High Hardness

Large Image :  Industrial Silicon Carbide Ceramic Ring Low Density High Hardness

Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-14
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 2000pcs

Industrial Silicon Carbide Ceramic Ring Low Density High Hardness

Description
Material: SSiC Color: Black
Gross Density: 3.14 G/cm^3 Young’s Modulus (dynamic)/Elasticity Modules: 410 Gpa
Thermal Conductivity Coefficient: 170 W/mK Maximum Operating Temperature: 1400 ℃
High Light:

zirconia ceramic rings

,

ceramic seal ring

Alumina Ceramic Parts Silicon Carbide Ceramic Ring Machinery Component Friction Resistance



One of the key factors influencing the cost-effectiveness of production is the wear and corrosion of plant components. Downtime and repair costs incurred is often caused by wear and corrosion performance that is not enough. Linings made from technical ceramics like silicon nitride obviously minimize wear and corrosion in areas subject to high stress and speed. In many fields where higher wear-resistant and corrosion-resistant properties are required, like steel mills, the chemical, food and beverage and pharmaceutical industries, power plants, cement and concrete industry, the preparation of mineral-based raw materials, the parts like linings, bushings, insulators, seal rings, chemical barriers made from advanced ceramics such as alumina, silicon nitride, silicon carbon are used as wear-resistant components in machines and plant equipment. They ensure longer service life, lower maintenance cost and more economical benefits overall.



Silicon carbide is toxicologically safe and can be used in the food industry. Another typical application for silicon carbide components is dynamic sealing technology using friction bearings and mechanical seals, for instance in pumps and drive systems. Compared to metals, silicon carbide enables highly economical solutions with longer tool life when used with aggressive, high-temperature media. Silicon carbide ceramics are also ideal for use in demanding conditions in ballistics, chemical production, energy technology, paper manufacturing and as pipe system components.



Except for its low density, high hardness and mechanical fatigue resistance, silicon nitride is self-lubricant, oxidation resistant, and usually used in fields where there is high temperature, because its monolithic crystal structure makes it capable of surviving severe thermal shock and thermal gradients generated even up to 1000℃. Thus it is a favorite material for mechanical components used in bearings, turbine blade, mechanical seals and permanent mold, metal cutting tools, or used as welding nozzles, chemical insulators, electrical insulators, bearing balls.



Suzhou Jingci Super Hard Materials Co., Ltd,  has specialized in precision ceramics for more than twenty years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci has the capability to provide customers with expertise to make sure the best design and materials are made for their specific application and needs
