Al2O3 Ceramic Piston

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Al2O3 Ceramic Piston

Al2O3 Ceramic Piston
Al2O3 Ceramic Piston

Large Image :  Al2O3 Ceramic Piston

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: Ceramic Plunger
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

Al2O3 Ceramic Piston

Description
Name: Ceramic Piston Units: Al2O3
Density: 3.9 G/cm3 Color: Ivory
Feature: High Mechanical Strength Vickers Hardness: 13Gpa
Flexural Strength (20°C): 380Mpa Compressive Strength (20°C): 3000Mpa
High Light:

Al2O3 Ceramic Piston

,

φ10mm Ceramic Piston

,

Al2O3 ceramic coating pistons

Al2O3 Ceramic Piston



Introduction

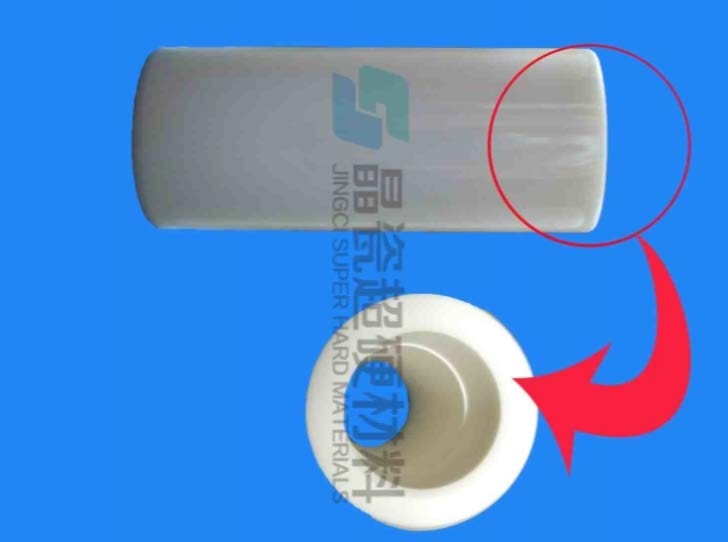

Part name: alumina ceramic plunger/alumina ceramic piston

Specifications: φ18mm*φ10mm*L48mm

Material: alumina ceramic

Alumina oxide material is used in a great number of industries for many years because its excellent combination of good properties like mechanical strength, Vickers hardness, compressive strength, fracture toughness. Ceramic parts are usually made from 95% alumina, 96% alumina, 99% alumina, or even higher percent like 99.5%.

Properties:

Al2O3, a non-metallic material, has many better properties than conventional materials, which resulting from its well-formed crystal structure.

Excellent electrical insulator at high temperatures

Good dimensional stability

High mechanical strength

Good abrasion resistance

Non-porous and vacuum tight

Corrosion resistant



Application:



The alumina ceramic plunger or piston is widely applied in agricultural pumps where there are high speed and high pressure, as well as high temperature caused by high speed of piston movement. Ceramic piston or plunger is capable of endure all these conditions. In addition, fluids flowing through agricultural pumps don’t have impact on the ceramic piston or plunger. These great properties obviously lengthen the service life of agricultural pumps



Suzhou Jingci Super Hard Materials Co., Ltd, has been working on production of ceramic pistons and plungers for nearly 18 years and has an outstanding manufacturing capability up to 60 thousand per month. Furthermore, striking machining capability is shown in the below table:



OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)
0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02
