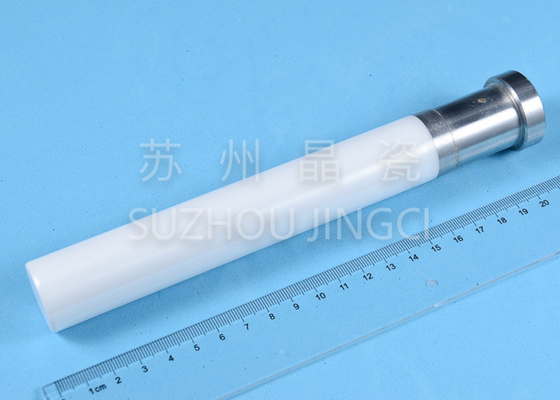

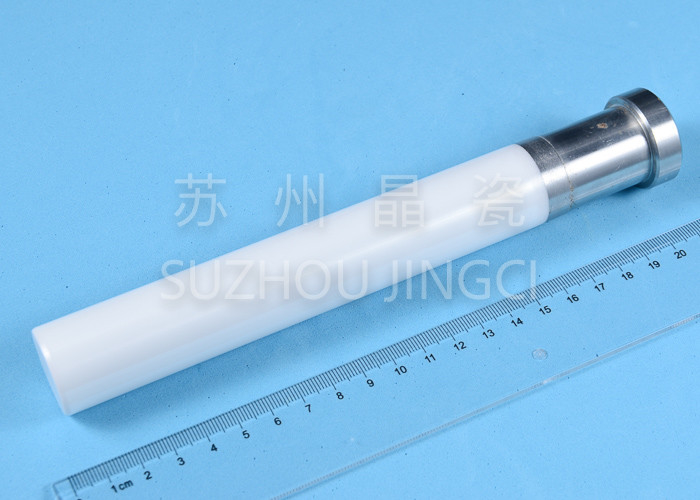

φ50mm Ceramic Plunger

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

φ50mm Ceramic Plunger

φ50mm Ceramic Plunger
φ50mm Ceramic Plunger

Large Image :  φ50mm Ceramic Plunger

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: Ceramic Plunger
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

φ50mm Ceramic Plunger

Description
Name: Ceramic Plunger Size: φ50mm*L230mm
Density: 3.9 G/cm3 Color: White
Water Absorption: 0% Vickers Hardness: 13Gpa
Flexural Strength (20°C): 380Mpa Compressive Strength (20°C): 3000Mpa
High Light:

φ50mm Ceramic Plunger

,

3.9 g/cm3 Ceramic Plunger

,

φ50mm ceramic piston

Zirconia Ceramic Piston Plus Stainless Steel Food and Beverage Machine Component Filling Pump



Introduction



Part Name: high-pressure ceramic piston or ceramic plunger

Specification: φ50mm*L230mm

Materials: Yttria-stabilized zirconia &stainless steel.

Powerful interatomic bonds endows zirconia ceramics not only with high hardness and wear resistance, but also a resistance to corrosion. Since they also tolerate high temperature, zirconia ceramics, they have obtained a permanent place in food and beverage industry, which meet their exacting requirements.



Properties:



--Striking smooth surface. The highly polished surface of a zirconia ceramic component with a value of Ra0.25 um leads to very low friction with resulting low heat generation.

--Excellent high hardness. The hardness of zirconia ceramic reaches up to 1300VH, combining very smooth polished surface, reduces abrasion to a minimum, and the surface will not degrade even after many years. Obviously the service life of plant equipment is lengthened much longer than before.



Application:



Ceramic pistons and plungers are widely used in filling lines, cleaning pumps, cleaning apparatus, metering pumps, food processing plant or filling machines where there are often high pressure, high speed, or even high temperature, in addition to different chemical fluids.

Machining precision:

Jingci Company is capable of machining precision as shown below:



OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendi-cularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)
0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02



Company profile:

Suhzou Jingci Super Hard Material is good at making such parts shown in the picture with precise dimensions and high qualities. The whole lines from mold shaping to complete machining, plus skillful company staff, can provide satisfying service for customers who have such demand.
