99% Ceramic Plunger

99% Ceramic Plunger
99% Ceramic Plunger

Large Image :  99% Ceramic Plunger

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: Ceramic Plunger
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

99% Ceramic Plunger

Description
Name: Ceramic Plunger Units: Al2O3 99%
Density: 3.9 G/cm3 Color: Ivory Or White
Water Absorption: 0% Vickers Hardness: 13Gpa
Flexural Strength (20°C): 380Mpa Compressive Strength (20°C): 3000Mpa
Highlight:

99% Ceramic Plunger

,

φ18mm Ceramic Plunger

,

99% plunger pump parts

99% Alumina Ceramic Plunger φ15-18mm Pump Component Anti-Abrasion High Hardness



Introduction

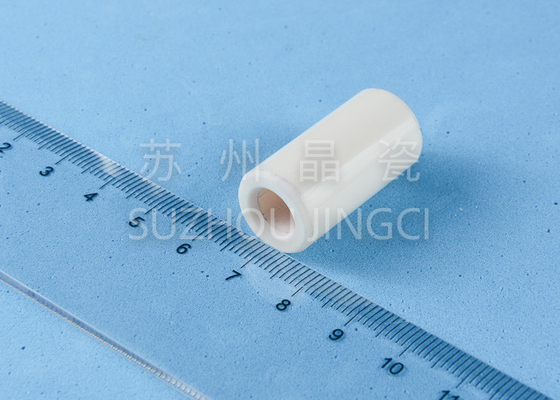

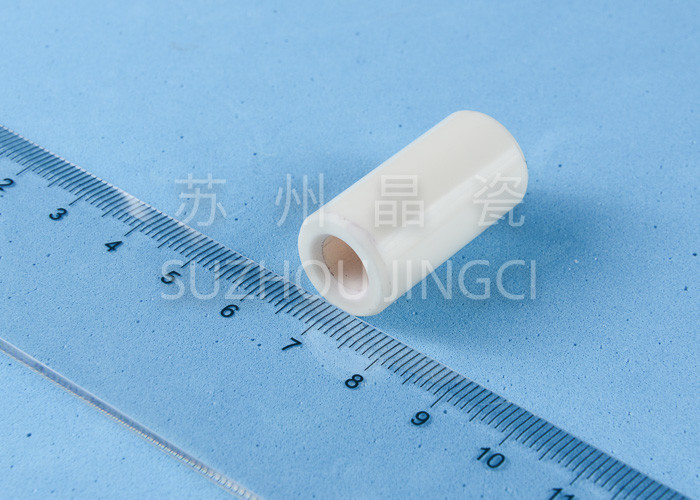

Part name: alumina ceramic plunger/ piston

Specifications: φ18mm*φ8mm*L30mm



Material:



99% Al2O3 is a great material which offers many good mechanical and performance properties. It consists of 95% ceramic powder particles less than 0.1mm and bonding agent. Then it is molded into a green part, semi-solid, by mechanical press or isostatic press. Then it is sintered in a stove with a about 1460℃ temperature, thereby obtaining its typical material properties.



Properties:

  • Good performance at high temperature
  • Good maintenance of dimensions
  • High mechanical strength
  • Good anti-friction
  • High hardness
  • Good corrosion resistance



Application:



Because of its excellent properties, the alumina ceramic is used in variant industries like electronics, electrical manufacturing, medical products or automotive manufacturing. Here the alumina ceramic plunger or piston is widely applied in agricultural pumps where there are high speed and high pressure, as well as high temperature caused by high speed of piston movement. Ceramic piston or plunger is capable of endure all these conditions.



Suzhou Jingci Super Hard Materials Co., Ltd, has been working on production of ceramic pistons and plungers for nearly 18 years and has an outstanding manufacturing capability up to 60 thousand per month. Furthermore, striking machining capability is shown in the below table:



OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)
0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02

.

Jingci is always developing new thoughts and ways on the production of ceramic parts so as to provide qualified and economic products for customers’ critical-service application.
