Product Details:
|
| Name: | Ceramic Pump Seal | Material: | Alumina, Silicon Carbon Or Zirconia |
|---|---|---|---|
| Color: | White Or Black | Density: | Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3 |
| Vickers Hardness: | Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV | Fracture Toughness: | Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2) |
| Compressive Strength: | Alumina ＞3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103)；Silicon Carbon 2200 (Mpa Psi*103) | Thermal Expending Coefficient: | Alumina 7.8-8.2 （1*10^-6/℃）；Silicon Carbon ≈4.5 （1*10^-6/℃） |
| High Light: | 99% Ceramic Pump Seal,3.9g/cm Ceramic Pump Seal,ceramic mechanical seal |
||

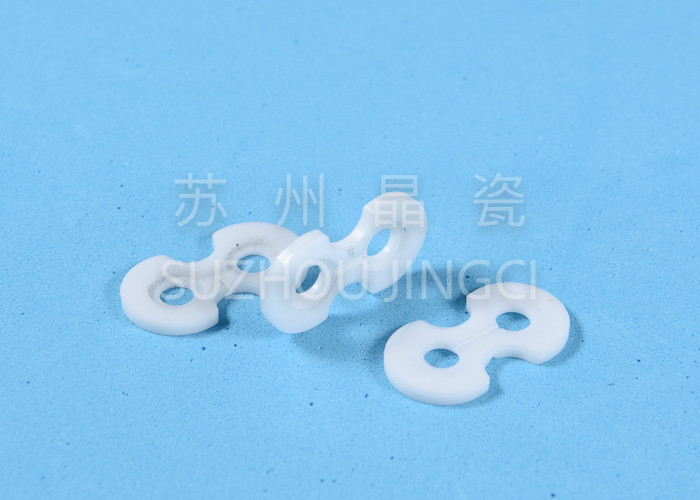

Zirconia Ceramic Pump Seal Part for Circulating Pump Automobile Component Anti-corrosion
Introduction
Ceramic, a non-organic material with much higher hardness than metallic parts, is a major engineering material. It offers a combination of good mechanical properties and electrical properties leading to a wide range of applications.
Technical ceramic is one of the ceramic categories, which refers the ceramic components, usually made from alumina ceramic, zirconia ceramic, silicon carbide or silicon nitride, used in manufacturing equipment, devices, machines, or other relevant facilities. These ceramic components are abrasion resistant, corrosion resistant, super hard and high temperature resistant, and can offer considerable advantages over metal components for tough, long-lifespan products like domestic and industrial pumps. At present, the motor of pumps such as micro pump, shield pump, circulating pump, centrifugal pump, impeller pump, magnetic drive pump, ground source heat pump, aquarium pump, fountain pump etc.
The alumina ceramic piston shown in the picture is used as an anti-friction components in the water pumps which can endure high pressure of different types of fluid, and at the same time resist corrosive fluid.
| Name: | Ceramic Pump Seal | Material: | Alumina, Silicon Carbon Or Zirconia |
|---|---|---|---|
| Color: | White Or Black | Density: | Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3 |
| Vickers Hardness: | Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV | Fracture Toughness: | Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2) |
| Compressive Strength: | Alumina ＞3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103)；Silicon Carbon 2200 (Mpa Psi*103) | Thermal Expending Coefficient: | Alumina 7.8-8.2 (1*10^-6/℃)；Silicon Carbon ≈4.5 (1*10^-6/℃) |
Properties:
High hardness(88-96HRA), anti-abrasion, anti-corrosion, acidproof, alkali-resistance, thermal resistance
Application:
mechanical sealing in different kinds of machines,equipments,devices
About Us
Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci ) has specialized in precision ceramics for more than twenty years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci has the capability to provide customers with expertise to make sure the best design and materials are made for their specific application and needs
