non - organic Alumina Ceramic Bearings and Shafts , durable Alumina Stick

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

non - organic Alumina Ceramic Bearings and Shafts , durable Alumina Stick

non - organic Alumina Ceramic Bearings and Shafts , durable Alumina Stick
non - organic Alumina Ceramic Bearings and Shafts , durable Alumina Stick

Large Image :  non - organic Alumina Ceramic Bearings and Shafts , durable Alumina Stick

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: RoHS; ISO9001-2015
Model Number: JC-1-19
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 150000pcs per 45 days

non - organic Alumina Ceramic Bearings and Shafts , durable Alumina Stick

Description
Material: 96% Alumina Color: White
Bulky Density (fired), Mg/m3): 3.8 Porosity (apparent): 0
Compressive Strentgh, Mpa: 3200 Thermal Conductivity , W/m.K@20℃: 28
High Light:

alumina ceramic radial bearing

,

alumina ceramic stick

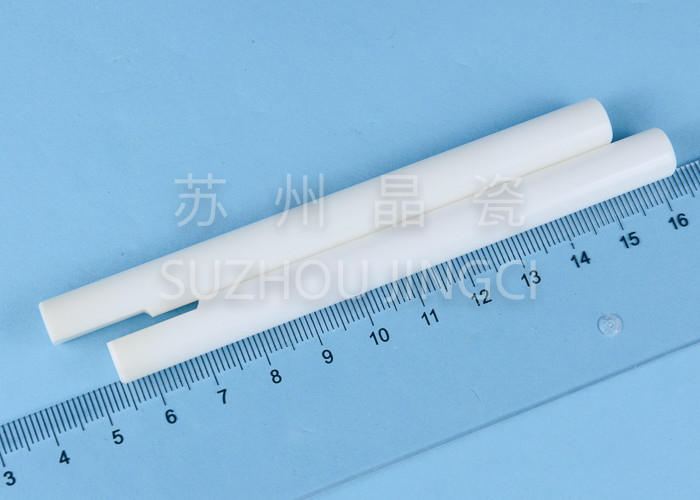

Alumina Ceramic Bearings and Shafts Alumina Stick DC Pump and Circulating Pump Component Wear Resistance



A ceramic part is a non-organic, non-metallic solid prepared by the action of press, heat, subsequent cooling and machining



Advanced ceramics components used in circulating heating pumps, shield pumps, like alumina ceramic shafts, alumina ceramic bearings, are hardwearing, durable, quiet and stable. The high excellent hardness, anti-corrosion offer considerable advantages over metal components, which can typically run more than 15 years.



For example, stainless steel-shaft / carbon bearings does not always offer the best abrasive wear resistance to limescale and black iron oxide particles present in heating systems, after a time, the gradual wearing of these pump components increases noise levels, Ceramic shafts / bearings rotating in the water containing abrasive wear particles, result in almost negligible wear, therefore maintaining tight clearance tolerances and virtually no noise increase over time.



Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci and whose website is www.fineceram.com) specializes in precision ceramics for years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. At present, Jingci owns more than ten production lines, bearings and shafts made from ceramics can be machined in high volume to micron precision tolerances using state of the art diamond processing and grinding wheel technology. For example, an alumina ceramic rod with dimensions φ12mm*L120mm , 0.5μm roundness, 3μm straightness and 12μm OD tolerances can be achieved in mass production.



Jingci has the capability to provide customers with expertise to make sure the best design and materials are made for their specific application and needs
