Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: RoHS; ISO9001-2015
Model Number: JC-1-24
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100000pcs per 45 days

Ceramic Rod Alumina Ceramic Bearings And Shafts Good Maintenance Of Dimensions

Description
Material: 95% Alumina Ceramic Maximum Operating Temperature: 1000 ℃
Thermal Shock Resistance: 250℃ Tc Gross Density: 3.7g/cm^3
Wear Resistance: G/cm^2 ≤0.1 Tensile Strength: 51KN
High Light:

alumina ceramic radial bearing

,

zirconia ceramic shaft

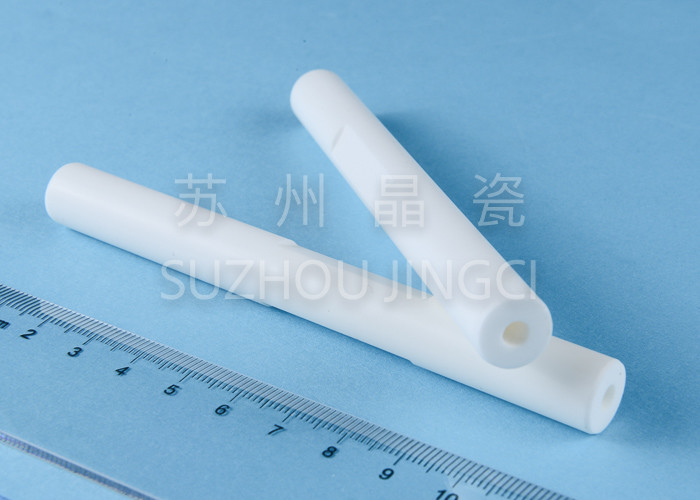

Ceramic Rod Alumina Ceramic Bearings and Shafts 95% Al2O3 Circulating Pump or Shield Pump Component Wear Resistance



Dimensions: bearings ODφ14*181

Color: white

Application: It is widely applied in the motor of pumps such as micro pump, shield pump, circulating pump, centrifugal pump, impeller pump, magnetic drive pump, ground source heat pump, aquarium pump, fountain pump etc, because it has excellent properties like anti-corrosion, anti-abrasion, high-temperature resistance, and obviously improve the pump running time.



Properties of ceramic shafts:

  1. Good performance at high temperature
  2. Good maintenance of dimensions
  3. High mechanical strength
  4. Good anti-friction
  5. Nearly no porosity
  6. Good corrosion resistance



Advanced ceramics components used in circulating heating pumps, shield pumps, like alumina ceramic shafts, alumina ceramic bearings, are hardwearing, durable, quiet and stable. The high excellent hardness, anti-corrosion offer considerable advantages over metal components, which can typically run more than 15 years



Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci and whose website is www.fineceram.com) specializes in precision ceramics for more than twenty years and owns more than ten production lines, thus bearings and shafts made from ceramics can be machined in high volume to micron precision tolerances using state of the art diamond processing and grinding wheel technology. The machining accuracy is shown in the below table.



Machining Accuracy of Ceramic Shafts
Dimension
Range (mm)
OD tolerance
(mm)
straightness
(mm)
Roundness
(mm)
Length tolerance
(mm)
Roughness
(mm)
Straightness
(mm)
Outer Diameter
3-230
0.000-0.015 0.005 0.005 ±0.05 Ra0.15-0.25 0.005
Inner Diameter
1-190
Length
5-400
