Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml

Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml
Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml

Large Image :  Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml

Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-09
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 sets

Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml

Description
Material: 99% Aluminum Precision: 0.01 Ml
Gross Density: 3.8-3.9g/g/cm^3 Vickers Hardness: 1600-2200 HV0.5
Alkali Resistance: Mg/cm^2 ≤0.1 Acid Resistance: Mg/cm^2 ≤0.7
High Light:

zirconia alumina ceramic

,

aluminum oxide ceramic

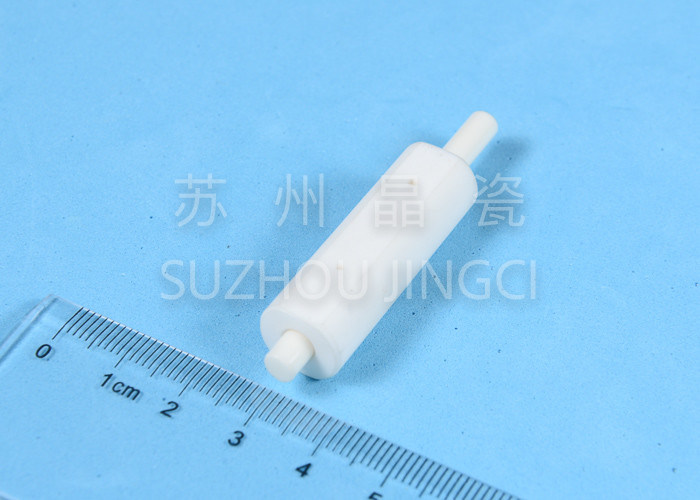

Alumina Ceramic Parts Ceramic Metering Pump Dosing Pump Pharmaceutical Filling Line Volume 0.5ml Corrosion Resistance



Yttria-stabilized zirconia ceramics’ hardness reaches HV2500, and has good properties as wear resistance, anti-corrosion, high temperature resistance, as well as excellent finish surface. In addition to its good properties of elasticity module and high hardness, it produces no non-toxic materials when working. So it is an ideal material for dosing pumps applied in fluid filling equipment of medicine.



A metering pump made from zirconia ceramic material has the following advantages:

  1. The extremely sluggishness of metallic oxide stands acid or alkali fluid without corrosion, and bear high temperature in the working environment; accordingly it also meet the strict requirement of regular disinfection and sterilization by high temperature.
  2. The striking wear resistance incurred by hardness make sure a 5-8times longer service life, than counterparts made from chrome-coated stainless steel, with nearly neglected material release, which has no pollution impact on the medical fluid.
  3. The compactness of crystal structure makes the surface polish of working area extremely good, usually is about Ra0.15, which greatly reduces friction and leaves few fluid residue in the pump cylinder. The smooth surface even makes the metering pump work continually without fluid in it and get no damage.
  4. The extremely low thermal expansion makes a less clearance between the cylinder and the piston, which helps maintain a stable filling precision.



Ceramic pump's Specifications &Machining Accuracy
Ceramic Metering Pump Pump Volume
(ml)
Volume Accuracy
(ml)
Materials
Three-piece set   0.5-2 ≈0.01 ceramic plus stainless steel
Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml 0 1-5 ≈0.01 ceramic plus stainless steel
5-10 ≈0.01 ceramic plus stainless steel
10-20 ≈0.01 ceramic plus stainless steel
20-30 ≈0.01 ceramic plus stainless steel
Two-piece set

 Precision Alumina Ceramic Parts , Ceramic Metering Pump Pharmaceutical Filling Line Volume 0.5ml 1



20-50 ≈0.03 ceramic plus stainless steel
50-100 ≈0.03 ceramic plus stainless steel
100-150 ≈0.03 ceramic plus stainless steel
150-200 ≈0.03 ceramic plus stainless steel
200-250 ≈0.03 ceramic plus stainless steel
250-350 ≈0.03 ceramic plus stainless steel
350-500 ≈0.03 ceramic plus stainless steel
