Anti Rust Alumina Ceramic Parts Stainless Steel Sewage Treatment Alumina Ceramic Sleeves

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Anti Rust Alumina Ceramic Parts Stainless Steel Sewage Treatment Alumina Ceramic Sleeves

Anti Rust Alumina Ceramic Parts Stainless Steel Sewage Treatment Alumina Ceramic Sleeves
Anti Rust Alumina Ceramic Parts Stainless Steel Sewage Treatment Alumina Ceramic Sleeves

Large Image :  Anti Rust Alumina Ceramic Parts Stainless Steel Sewage Treatment Alumina Ceramic Sleeves

Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-20
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 sets per 30 days

Anti Rust Alumina Ceramic Parts Stainless Steel Sewage Treatment Alumina Ceramic Sleeves

Description
Main Component: 99% Al2O3 Or Aluminium Color: White Or Ivory
Young’s Modulus (dynamic)/Elasticity Modules: 380 Gpa Thermal Conductivity: 32 W/mK
Thermal Shock Resistance: 280℃ Tc Alkali Resistance: Mg/cm^2 ≤0.1
High Light:

zirconia alumina ceramic

,

engineering ceramics

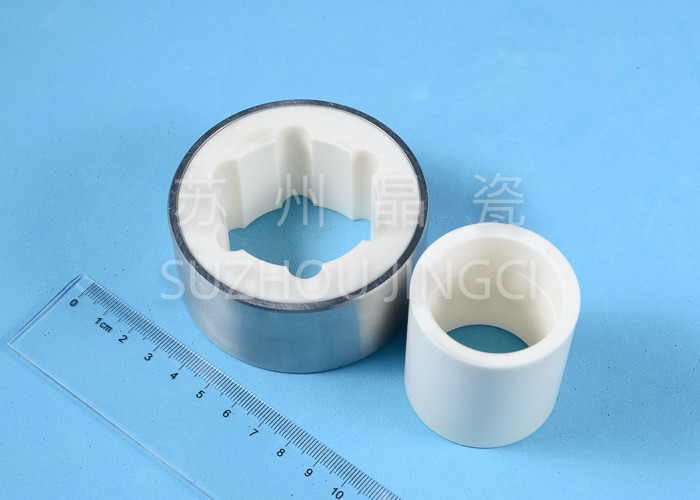

Alumina Ceramic Sleeves with Stainless Steel Sewage Treatment Anti-corrosion Wear Resistance



Part name: out sleeve of bearing &inner sleeve of bearing

Material: 99% Al2O3 (alumina ceramic) &stainless steel

Dimension: outer sleeve φ45mm*φ35mm*L38mm

Inner sleeve φ75mm*φ45mm*L35mm

Properties of alumina ceramics:

Alumina ceramics (Al2O3), as an engineering material, are often used in plant equipment.

They have outstanding mechanical performance such as good elasticity modules, high Vickers hardness and compressive strength, good flexural strength and fracture toughness. Of course, they are also highly corrosion resistant, low thermally conductive and strikingly temperature resistant.

Application:

It is known that sewage water needs going through different processes which containing different acid or alkaline additives with the aim to get rid of harmful materials. Powerful interatomic bonds not only give ceramic materials hardness and wear resistance. Since they also tolerate high temperatures, ceramics have widely used in areas like chemical, energy and environmental technologies. For just its outstanding performance of a resistance to corrosion Alumina ceramics are capable of withstanding acid and alkaline fluid, alumina ceramics are ideal material for components used in treatment equipment.

By heat treatment, the assembly parts combines stainless steel and alumina ceramic together, which only allows alumina ceramic part contact acid or alkaline fluid. In this way, service life of sewage treatment equipment is greatly lengthened.

Company profile:

Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci and whose website is www.fineceram.com) specializes in precision ceramics for more than 20 years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci owns whole production lines from mold shaping to machining and skillful company staff who are good at producing ceramic parts precisely.
