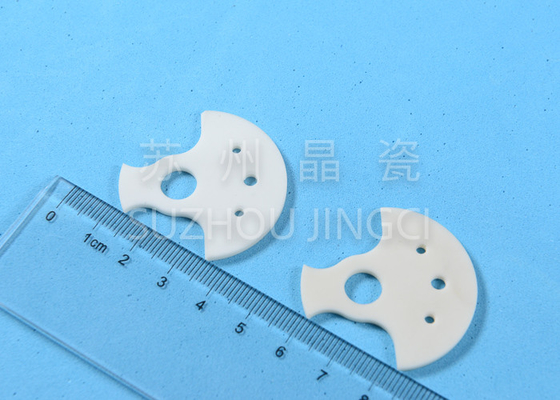

Ceramic Elemental Alumina Ceramic Parts Disc Automotive Pump Components Anti Corrosion

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Ceramic Elemental Alumina Ceramic Parts Disc Automotive Pump Components Anti Corrosion

Ceramic Elemental Alumina Ceramic Parts Disc Automotive Pump Components Anti Corrosion
Ceramic Elemental Alumina Ceramic Parts Disc Automotive Pump Components Anti Corrosion

Large Image :  Ceramic Elemental Alumina Ceramic Parts Disc Automotive Pump Components Anti Corrosion

Product Details:
Place of Origin: Suzhou, China
Brand Name: Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-28
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 5000 pcs

Ceramic Elemental Alumina Ceramic Parts Disc Automotive Pump Components Anti Corrosion

Description
Material Grade (%Al2O3 Content): 96% Porosity (apparent): 0
Color: White Young's Modulus, Gpa@20℃: 360
Flexural Strength (3-point),Mpa: Flexural Strength (3-point),Mpa Bulky Density (fired), Mg/m3): 3.8
Highlight:

zirconia alumina ceramic

,

aluminum oxide ceramic

Ceramic Elemental Part Alumina Disc Automotive Pump Components Anti-corrosion Wear Resistance



Alumina or aluminum Oxide, Al2O3 is a major engineering material, and is the most widely used fine ceramics material. This material has superb material characteristics such as high electrical insulation, high mechanical strength, high wear and chemical resistance. Because of the universal existence of aluminum and oxygen, the price of alumina material maintain a comparatively lower price than other materials.



A well-formed crystal structure is formed for this metallic oxide during sintering. For this reason, the parts made from it have good performance of corrosion resistance, are insoluble in weak acid or alkaline solution, let alone normal water or medical fluid. The ceramic alumina parts are only slightly soluble in strong acid and alkaline solution.



It works with other alumina ceramic components in a gear-type oil pump of cars to transfer lubricating oil precisely and durably, without corrosion by the oil. It economically reduces the gas consumption for the lighter density comparable to metal parts.



Suzhou Jingci Super Hard Materials Co., Ltd,  owns whole production lines from shaping to machining and its professional staff are skilled at shaping of green parts, sintering and machining, and accomplish a good machining precision as shown below:

OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roundness
(mm)
ID tolerance
(mm)

0-0.015 0.02 0.005 0.02 0.05 0.005 0.02
