High Pressure Valve Shaft White Zirconia Rod Food And Beverage Processing Machinery Homogenizer

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

High Pressure Valve Shaft White Zirconia Rod Food And Beverage Processing Machinery Homogenizer

High Pressure Valve Shaft White Zirconia Rod Food And Beverage Processing Machinery Homogenizer
High Pressure Valve Shaft White Zirconia Rod Food And Beverage Processing Machinery Homogenizer

Large Image :  High Pressure Valve Shaft White Zirconia Rod Food And Beverage Processing Machinery Homogenizer

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-31
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 pcs

High Pressure Valve Shaft White Zirconia Rod Food And Beverage Processing Machinery Homogenizer

Description
Fundamental Properties: High Hardness, Good Wear Resistance Main Component: Zirconia
Flexural Strength: 1000 Mpa (Psi*103) Gross Density: 6g/cm^3
Thermal Shock Resistance: 270℃ Tc Volume Resistivity: >10^15 100°
High Light:

aluminum oxide ceramic

,

engineering ceramics

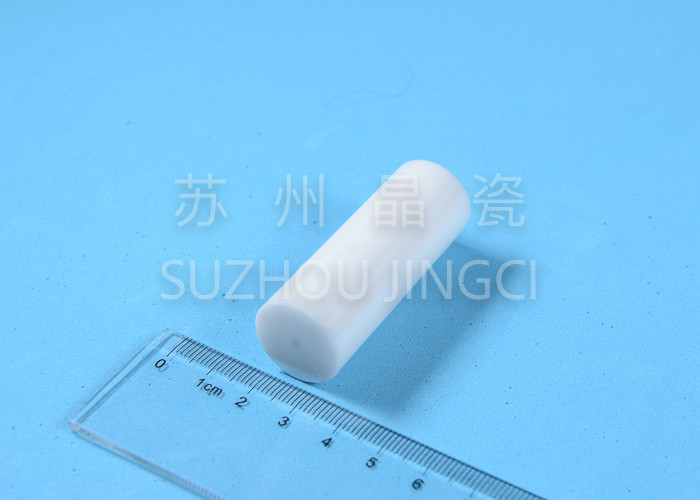

High-pressure Valve Shaft White Zirconia Rod Food and Beverage Processing Machinery Homogenizer



Part Name: high-pressure rod/high-pressure plug

The part works together with a zirconia ceramic ring and a zirconia ceramic seat.

Specifications: φ20*56

Materials: Yttria-stabilized zirconia

Advantages of zirconia parts:

Zirconia ceramic parts are less hard than alumina ceramic ones, which is 1300 HV0.5. But they have better flexural strength, compressive strength and fracture toughness, which means zirconia parts are less brittle than alumina ceramic parts. Also the roughness of zirconia ceramics is usually no more than 0.15um, much smoother than alumina ceramic bearings. On the other hand, zirconia ceramic parts have nearly the same corrosion resistance property as alumina ceramics.

Application: In food and beverage industry, the zirconia rod is supposed to move with high speed and pressure to transport acids or alkalis. These media often contain solids that would have a devastating impact on conventional materials under conditions involving high pressure and speed in the gaps between a zirconia piston and other zirconia partners like a zirconia ring and zirconia seat. Component corrosion and pollution incurred are impossible to be accepted in food and beverage industry. Physiologist soundness of zirconia ceramics provides a nearly perfect solution for mechanical engineering of food &beverage industry. And because of its safety, zirconia alumina material is also agreed by USDA to contact food and beverage.

Company profile:

Suzhou Jingci Super Hard Materials Co., Ltd,  specializes in precision ceramics for more than 20 years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci owns whole production lines from mold shaping to machining and skillful company staff who are good at producing ceramic parts precisely.
