Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

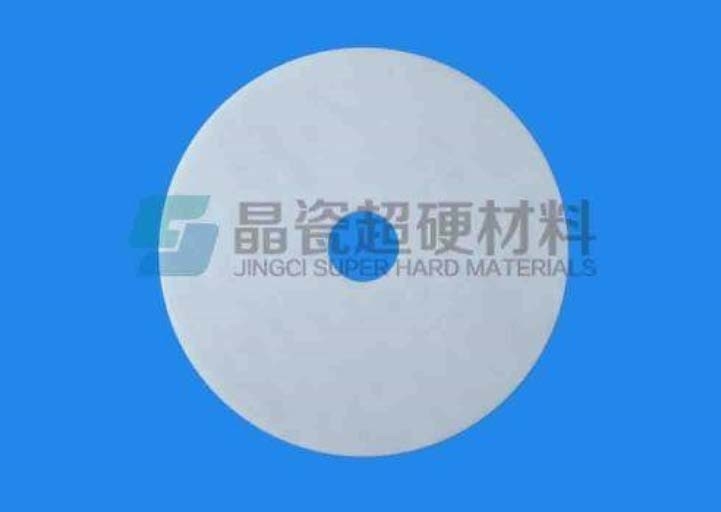

Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal

Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal
Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal

Large Image :  Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: RoHS
Model Number: JCMF007
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 30000pcs per 45 days

Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal

Description
Name: Zirconia Pump Seal Material: ZrO2 Al2O3
Feature: Alkali Resisting Density: Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3
Vickers Hardness: Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV Fracture Toughness: Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2)
Compressive Strength: Alumina >3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103);Silicon Carbon 2200 (Mpa Psi*103) Thermal Expending Coefficient: Alumina 7.8-8.2 (1*10^-6/℃);Silicon Carbon ≈4.5 (1*10^-6/℃)
High Light:

Al2O3 Ceramic Pump Seal

,

ZrO2 Ceramic Pump Seal

,

Al2O3 zirconia pump seal

Ceramic Seal Slice Seal Plate Seal Disc ZrO2 Al2O3 Alumina Zirconia Mechanical Component



Material: 99%Alumina ceramics


Density: 3.9-3.92g/cm3
Machining accuracy: ±0.02
Surface roughness: Ra 0.2
Performance: Wear resistance, acid and alkali resistance
Application: used in pumps and Mechanical seal



Detailed Product Description

Name: Zirconia Pump Seal Material: ZrO2 Al2O3
Feature: Alkali Resisting Density: Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3
Vickers Hardness: Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV Fracture Toughness: Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2)
Compressive Strength: Alumina >3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103);Silicon Carbon 2200 (Mpa Psi*103) Thermal Expending Coefficient: Alumina 7.8-8.2 (1*10^-6/℃);Silicon Carbon ≈4.5 (1*10^-6/℃)



Properties:



High hardness(88-96HRA), anti-abrasion, anti-corrosion, acidproof, alkali-resistance, thermal resistance



Application:



mechanical sealing in different kinds of machines,equipments,devices



About Us



Suzhou Jingci Super Hard Materials Co., Ltd,has specialized in precision ceramics for more than twenty years and has rich experiences in designing and developing technical ceramic solutions for a wide variety of applications. Jingci has the capability to provide customers with expertise to make sure the best design and materials are made for their specific application and needs
