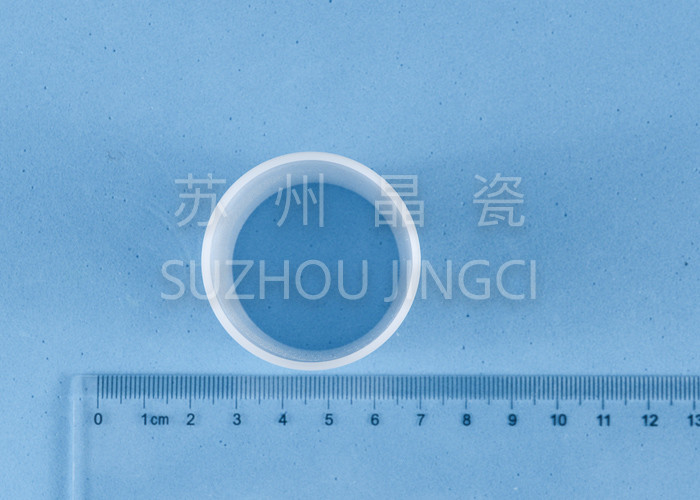

Machine Spare Parts Zro2 High Temperature Ceramic Bushings

Machine Spare Parts Zro2 High Temperature Ceramic Bushings
Machine Spare Parts Zro2 High Temperature Ceramic Bushings

Large Image :  Machine Spare Parts Zro2 High Temperature Ceramic Bushings

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-17
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000pcs per 30 days

Machine Spare Parts Zro2 High Temperature Ceramic Bushings

Description
Material: Zirconium Color: White
Density: 6g/cm3 Compressive Strength: 3900Mpa (Psix103)
Vickers Hardness: 1300 HV0.5 Thermal Conductivity: 4 W/mK
High Light:

Zro2 High Temperature Ceramic Bushings

,

Zirconium High Temperature Ceramic Bushings

,

Zro2 Ceramic Bushings

Alumina Ceramic Parts Zirconia Ceramic Bushing zirconia Sleeves Machinery Component Abrasion Resistance



Wear protection for plant equipment is very important, because it has a direct impact on the cost-effectiveness of production. In many industries, there is restrict demands on the performance of abrasion resistance of some mechanical components. Linings or bushings made from technical ceramics reduces the wear and corrosion between mechanical components to the lowest extent. They ensure longer service life, are lower in maintenance and are thus more economical overall. Usually, these mechanical linings or bushings are made from zirconia oxide (zirconia), because it has remarkable properties of strength, hardness, wear resistance, elasticity modules, flexural strength and fracture toughness. In addition, it can withstand high temperature up to 1200 ℃ for long periods under great mechanical stress. Typically the wear resistant parts made from zirconia are applied in areas like volatile chemical solutions transportation, jet and diesel engine components, containers for molten metals, high speed cutting tools, high wear components, transistor insulators, dental implants, bearing balls, pump seals, and ball valves.



Suzhou Jingci Super Hard Material Co., Ltd. has its own whole production lines from shaping to machining and its professional staff are skilled at shaping of green parts, sintering and machining, and accomplish a good machining precision.



Jingci's Machining Accuracy
OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)

0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02







FAQ

q: are you trading company or manufacturer ?
a: we are factory.
q: how long is your delivery time?
a: generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
q: do you provide samples ? is it free or extra ?
a: yes, we could offer the sample for free charge but do not pay the cost of freight.
q: what is your terms of payment ?
a: payment<=1000usd, 100% in advance. payment>=1000usd, 50% t/t in advance ,balance before shippment.
