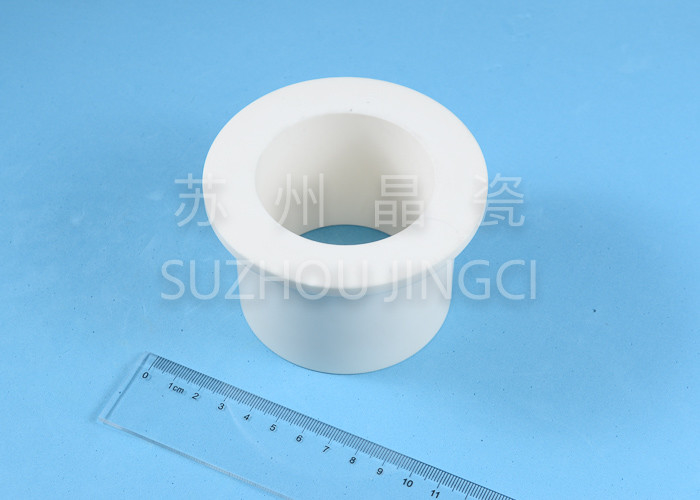

0.02mm Concentricity 6g/Cm3 High Temperature Ceramic Bushings

0.02mm Concentricity 6g/Cm3 High Temperature Ceramic Bushings
0.02mm Concentricity 6g/Cm3 High Temperature Ceramic Bushings

Large Image :  0.02mm Concentricity 6g/Cm3 High Temperature Ceramic Bushings

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-17
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiable
Packaging Details: carton box 210mm*200mm*103mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000pcs per 30 days

0.02mm Concentricity 6g/Cm3 High Temperature Ceramic Bushings

Description
Material: Zirconium Color: White
Density: 6g/cm3 Compressive Strength: 3900Mpa (Psix103)
Vickers Hardness: 1300 HV0.5 Thermal Conductivity: 4 W/mK
High Light:

0.02mm High Temperature Ceramic Bushings

,

6g/cm3 High Temperature Ceramic Bushings

,

1200℃ Temperature Ceramic Bushings

Alumina Ceramic Parts Zirconia Ceramic Bushing zirconia Sleeves Machinery Component Abrasion Resistance



wear protection for plant equipment is very important, because it has a direct impact on the cost-effectiveness of production. in many industries, there is restrict demands on the performance of abrasion resistance of some mechanical components. linings or bushings made from technical ceramics reduces the wear and corrosion between mechanical components to the lowest extent. they ensure longer service life, are lower in maintenance and are thus more economical overall. usually, these mechanical linings or bushings are made from zirconia oxide (zirconia), because it has remarkable properties of strength, hardness, wear resistance, elasticity modules, flexural strength and fracture toughness. in addition, it can withstand high temperature up to 1200 ℃ for long periods under great mechanical stress.





Jingci's Machining Accuracy
OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)

0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02
