Anti - Abrasion Zirconia Alumina Shaft φ4.5 Centrifugal Pump DC Circulation Pump

Anti - Abrasion Zirconia Alumina Shaft φ4.5 Centrifugal Pump DC Circulation Pump
Anti - Abrasion Zirconia Alumina Shaft φ4.5 Centrifugal Pump DC Circulation Pump

Large Image :  Anti - Abrasion Zirconia Alumina Shaft φ4.5 Centrifugal Pump DC Circulation Pump

Product Details:
Place of Origin: Suzhou China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-2-16
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50000pcs per 45 days

Anti - Abrasion Zirconia Alumina Shaft φ4.5 Centrifugal Pump DC Circulation Pump

Description
Material: Zirconia Or Alumina Density: ≥3.7g/cm3;≥6.0g/cm3
Thermal Conductivity: 28 Or 4 W/mK Maximum Operating Temperature: >1200 ℃
Vickers Hardness: 1300-2200 HV0.5 Water Absorption: 0%
High Light:

aluminum oxide ceramic

,

engineering ceramics

Alumina Ceramic Parts Zirconia Alumina Shaft φ4.5 Centrifugal Pump DC Circulation Pump Anti-abrasion



Aluminum Oxide, Al2O3 has an outstanding properties like superior mechanical strength, Vickers hardness, compressive strength, fracture toughness. Accordingly, it is wear resistant, and corrosion resistant. Because of it is a metallic oxide with well-formed crystal structure, the parts made from it have good performance of corrosion resistance, are insoluble in weak acid or alkaline solution, let alone normal water or medical fluid. The ceramic alumina parts are only slightly soluble in strong acid and alkaline solution.

So, it is usually applied as pump components instead of metal shafts in variant pumps like micro pump, shield pump, circulating pump, centrifugal pump, impeller pump, magnetic drive pump, ground source heat pump, aquarium pump, fountain pump, DC circulation pump etc.

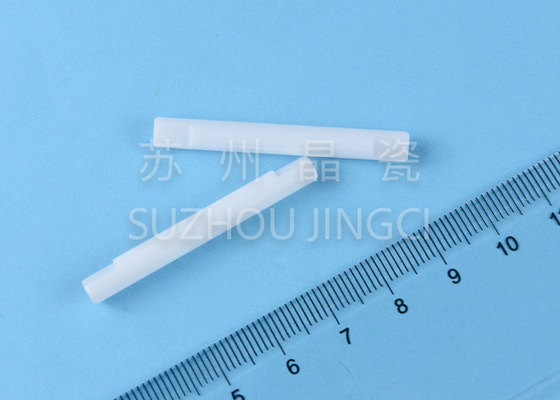

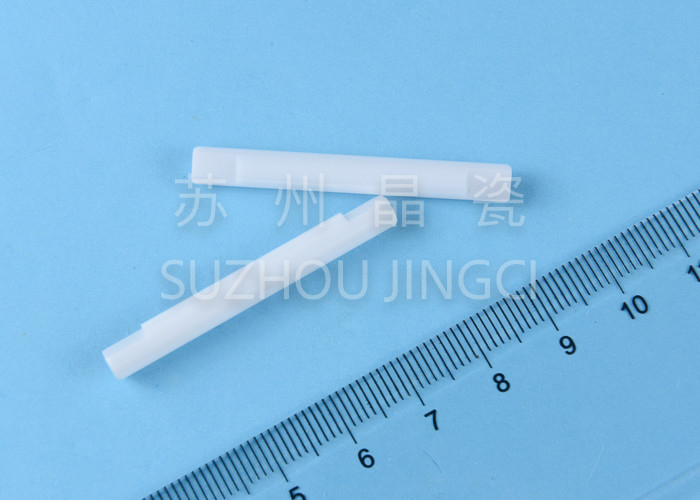

The Dimensions of the ceramic shaft is φ4.5*L126mm, made from 95% Alumina or Aluminum Oxide (Al2O3) with white color.



Suzhou Jingci Super Hard Material Co., Ltd. Has its own whole production lines from shaping to machining and its professional staff are skilled at shaping of green parts, sintering and machining, and accomplish a good machining precision.

Machining Accuracy of Ceramic Shafts
Dimension
Range (mm)
OD tolerance
(mm)
straightness
(mm)
Roundness
(mm)
Length tolerance
(mm)
Roughness
(mm)
Straightness
(mm)
Outer Diameter
3-230
0.000-0.015 0.005 0.005 ±0.05 Ra0.15-0.25 0.005
Inner Diameter
1-190
Length
5-400

Jingci will make continuous efforts to provide fine ceramic solution for customers around the world, whose visit, guidance and win-win cooperation are warmly welcome
