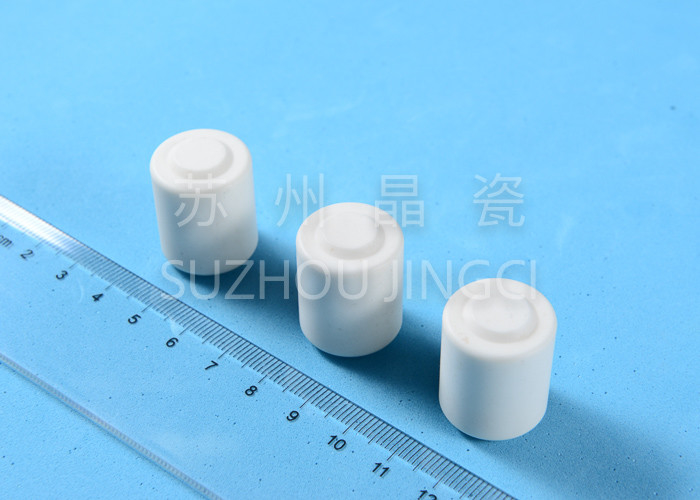

99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness

99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness
99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness

Large Image :  99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: JC-7-04
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness

Description
Main Component: 99% Al2O3 Gross Density: 3.8-3.9g/g/cm^3
Vickers Hardness: 1600-2200 HV0.5 Thermal Shock Resistance: 280℃ Tc
Acid Resistance: Mg/cm^2 ≤0.7 Young’s Modulus (dynamic)/Elasticity Modules: 380 Gpa
High Light:

zirconia plunger

,

ceramic pistons

99% Alumina Ceramic Piston Inferior Pump Component Wear Resistance High Hardness



Ceramic, a non-organic material with much higher hardness than metallic parts, is a major engineering material. It offers a combination of good mechanical properties and electrical properties leading to a wide range of applications.

Properties Units Al2O3 99%

Mechanical Density g/cm3 3.9
  Color -- Ivory or white
  Water Absorption % 0
  Vickers Hardness Gpa 13
  Flexural Strength (20°C) Mpa 380
  Compressive Strength (20°C) Mpa 3000
Thermal Thermal Conductivity (20°C) W/m.K 25~35
  Thermal Shock Resistance (20°C) ΔT(C) 200
  Maximum Use Temperature °C 1700
Electrical Volume Resistivity (25°C) Ω.cm >1014



Alumina is a most commonly used ceramic material for pump components for its low cost and striking durability. Usually pistons made from 99% alumina ceramic are used as an important components in heating, dosing and high pressure pumps used in industrial, food and agricultural applications where corrosion and abrasion resistance are required and service longevity is needed.



Suzhou Jingci Super Hard Materials Co., Ltd, (here after referred to as Jingci and whose website is www.fineceram.com) has been working on production of ceramic piston and piston for more than nearly 20 years and has rich experience in producing and quality control, and can produce pistons and plungers with diameters from 3mm to 240mm and Ra0.25 surface. Jingci has been an outstanding supplier for famous international customers like Karcher, Wilo and AR pump these years.

Jingci is always developing new thoughts and ways on the production of ceramic parts so as to provide qualified and economic products for customers’ critical-service application.
