High Pressure Cleaning Machine Al2O3 99% Ceramic Plunger

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

High Pressure Cleaning Machine Al2O3 99% Ceramic Plunger

High Pressure Cleaning Machine Al2O3 99% Ceramic Plunger
High Pressure Cleaning Machine Al2O3 99% Ceramic Plunger

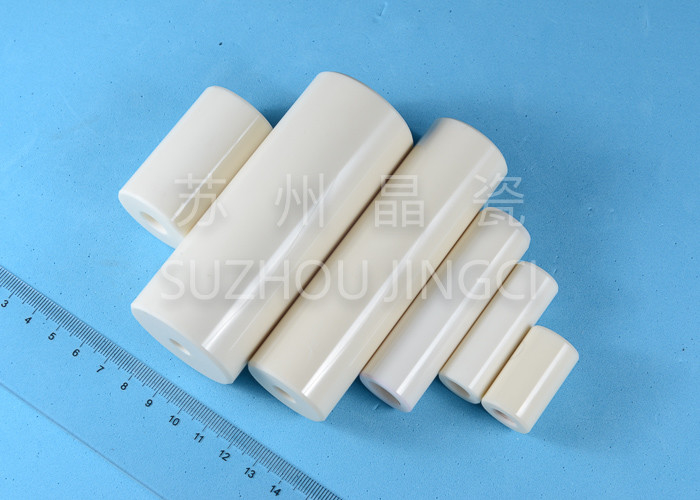

Large Image :  High Pressure Cleaning Machine Al2O3 99% Ceramic Plunger

Product Details:
Place of Origin: Suzhou, China
Brand Name: Suzhou Jingci
Certification: REACH Certificate; ISO9001-2015
Model Number: Ceramic Plunger
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box&plastic bag 210mm*200mm*103mm
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per 30 days

High Pressure Cleaning Machine Al2O3 99% Ceramic Plunger

Description
Name: Ceramic Plunger Units: Al2O3 99%
Usage: High Pressure Cleaning Machine Color: Ivory Or White
Water Absorption: 0% Vickers Hardness: 13Gpa
Flexural Strength (20°C): 380Mpa Compressive Strength (20°C): 3000Mpa
High Light:

99% Ceramic Plunger

,

Al2O3 Ceramic Plunger

,

99% piston ceramic

Ceramic Plunger High Pressure Cleaning Machine High Pressure Resistance



Quick details



Aluminum Oxide, Al2O3 has an outstanding properties like superior mechanical strength, Vickers hardness, compressive strength, fracture toughness. Accordingly, it is wear resistant, and corrosion resistant. Because of it is a metallic oxide with well-formed crystal structure, the parts made from it have good performance of corrosion resistance, are insoluble in weak acid or alkaline solution, let alone normal water or medical fluid. The ceramic alumina parts are only slightly soluble in strong acid and alkaline solution.



Parameters



OD tolerance
(mm)
Concentricity
(mm)
Straightness
(mm)
Perpendicularity
(mm)
Length tolerance
(mm)
Roughness
(mm)
Roundness
(mm)
ID tolerance
(mm)
0.01 0.02 0.005 0.02 0.05 Ra0.15-0.25 0.005 0.02



Details



Alumina ceramic plungers, are formed by isostatic pressing or dry pressing technology. Grinding and polishing provide a uniform working surface for a stable performance. Through long operation, there is no leakage or just low leakage because of the high wear resistance of alumina ceramics. The alumina material complies with different drinking water regulations including certification for use up to 85° for German KTW, United Kingdom’s WRAS and French ACS, also for NSF for food safety.



The roughness of the surface of piston and plunger can be less than 0.25μm after polishing. The highly polished surface leads to very low friction which reduces heat generation greatly. Abrasion caused by solid particles will be lowered to a minimum due to the great hardness of the ceramic which is nearly as hard as diamond.



Suzhou Jingci Super Hard Materials Co., Ltd, has been working on production of ceramic pistons and plungers for nearly 18 years and has an outstanding manufacturing capability up to 60 thousand per month. Furthermore, striking machining capability is shown in the below table:



Jingci is always developing new thoughts and ways on the production of ceramic parts so as to provide qualified and economic products for customers’ critical-service application.
