Product Details:
|
| Name: | Ceramic Face Seal | Usage: | Fountain Pump |
|---|---|---|---|
| Color: | As Picture | Density: | Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3 |
| Vickers Hardness: | Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV | Fracture Toughness: | Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2) |
| Compressive Strength: | Alumina ＞3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103)；Silicon Carbon 2200 (Mpa Psi*103) | Thermal Expending Coefficient: | Alumina 7.8-8.2 （1*10^-6/℃）；Silicon Carbon ≈4.5 （1*10^-6/℃） |
| High Light: | 3.7g/Cm3 Ceramic Pump Seal,Al2O3 Ceramic Pump Seal,95% ceramic face seal |
||

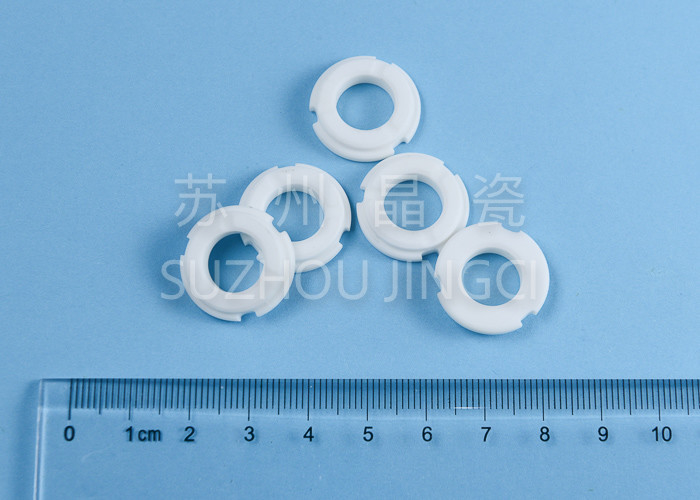

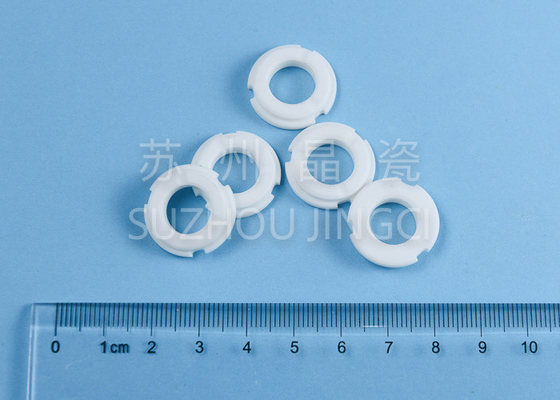

Ceramic Pump Seal 95% Al2O3 Pump Seal Part Fountain Pump Component Corrosion Resistance
Introduction
1. Name: Alumina Ceramic Ring
2. Size: as customers' drawing
3. Al2O3 Content: 95%/99% alumina
4. Color: white or ivory
5. Working Temperature: 1500-1700 degree
6. Feature: high mechanical strength, good insulation&high wear resistant, etc.
7. Application: for refractory furnace or kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings or other mechanical applications
| Ceramic 95% | |
| Alumina | |
| Fundamental properties | High hardness, good wear resistance under abrasion,low electrical conductivity,good value for money |
| Main component | 95% Al2O3 |
| Gross density | 3.7g/cm^3 |
| Flexural Strength | 400 Mpa (Psi*103) |
| Compressive Strength | 3100Mpa (Psix103) |
| Fracture Toughness | 5 Mpa m1/2 |
| Young’s Modulus (dynamic)/Elasticity Modules | 300 Gpa |
| Vickers Hardness | 1500-2200 HV |
| Thermal Conductivity | 28 W/mK |
| Coefficient of Linear Expansion (20–400°C) |
7.5 10^–6 K–1 |
| Maximum Operating Temperature | 1400 ℃ |
| Thermal Expanding Coefficient | 7.5 (1x10^-6/℃) |
| Thermal Shock Resistance | 250℃ Tc |
| Disruptive Strength | KV/mm,DC ≥20 |
| Acid Resistance | mg/cm^2 ≤0.7 |
| Alkali Resistance | mg/cm^2 ≤0.2 |
| Wear Resistance | g/cm^2 ≤0.1 |
| Dielectric Strength | 9.0 εr(20℃ ,1MHz) |
| Dielectric Constant | 9.2 1MHz 25° |
| Tensile Strength | 51KN |
| Volume Resistivity | ＞10^15 100° |
| Water Absorption | 0 |
| Specific Heat Capacity | 0.78x10^3 J/(kg.K) |
Properties:
High hardness(88-96HRA), anti-abrasion, anti-corrosion, acidproof, alkali-resistance, thermal resistance
Application:
mechanical sealing in different kinds of machines,equipments,devices
