Spacecraft foodstuff 1500HV 95% Ceramic Pump Seal

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Spacecraft foodstuff 1500HV 95% Ceramic Pump Seal

Spacecraft foodstuff 1500HV 95% Ceramic Pump Seal
Spacecraft foodstuff 1500HV 95% Ceramic Pump Seal

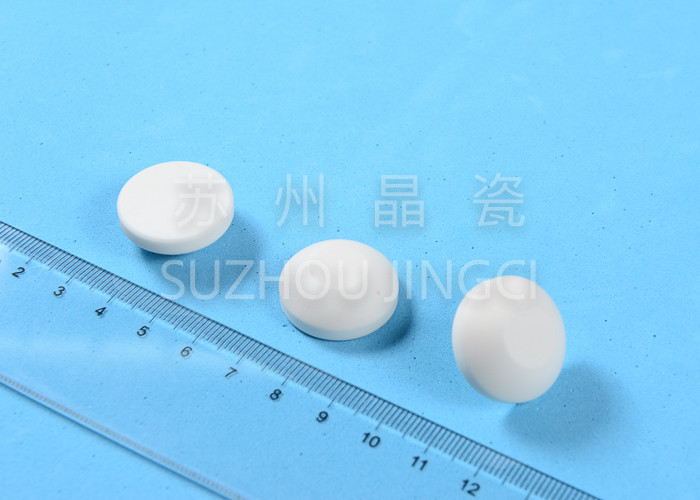

Large Image :  Spacecraft foodstuff 1500HV 95% Ceramic Pump Seal

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: RoHS
Model Number: JCMF007
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 30000pcs per 45 days

Spacecraft foodstuff 1500HV 95% Ceramic Pump Seal

Description
Name: Ceramic Mechanical Seal Material: 95% Alumina,
Color: White Or Black Usage: Spacecraft Foodstuff
Vickers Hardness: Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV Fracture Toughness: Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2)
Compressive Strength: Alumina >3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103);Silicon Carbon 2200 (Mpa Psi*103) Thermal Expending Coefficient: Alumina 7.8-8.2 (1*10^-6/℃);Silicon Carbon ≈4.5 (1*10^-6/℃)
High Light:

95% Ceramic Pump Seal

,

1500HV Ceramic Pump Seal

,

95% ceramic mechanical seal

95% Ceramic Pump Seal Part Pump Component Anti-corrosion



Introduction



alumina ceramic pump seal ring has great performance in electronic inslulation, high heat resistant, high wear resistance, makes it performace well in different piston or shaft products.



Application:



It widely used in spacecraft,machinery,metallurgy,printing and dyeing, foodstuff, pharmaceutical, auto industry and so on



Detailed Product Description




Ceramic 95%
  Alumina
Fundamental properties High hardness, good wear resistance under abrasion,low electrical conductivity,good value for money
Main component 95% Al2O3
Gross density 3.7g/cm^3
Flexural Strength 400 Mpa (Psi*103)
Compressive Strength 3100Mpa (Psix103)
Fracture Toughness 5 Mpa m1/2
Young’s Modulus (dynamic)/Elasticity Modules 300 Gpa
Vickers Hardness 1500-2200 HV
Thermal Conductivity 28 W/mK
Coefficient of Linear Expansion
(20–400°C)
7.5 10^–6 K–1
Maximum Operating Temperature 1400 ℃
Thermal Expanding Coefficient 7.5 (1x10^-6/℃)
Thermal Shock Resistance 250℃ Tc
Disruptive Strength KV/mm,DC ≥20
Acid Resistance mg/cm^2 ≤0.7
Alkali Resistance mg/cm^2 ≤0.2
Wear Resistance g/cm^2 ≤0.1
Dielectric Strength 9.0 εr(20℃ ,1MHz)
Dielectric Constant 9.2 1MHz 25°
Tensile Strength 51KN
Volume Resistivity >10^15 100°
Water Absorption 0
Specific Heat Capacity 0.78x10^3 J/(kg.K)

Advantages



·High wear, heat, pressure, and chemical attack resistance (gas and liquids)

·Extreme hardness

·Excellent electrical insulation
