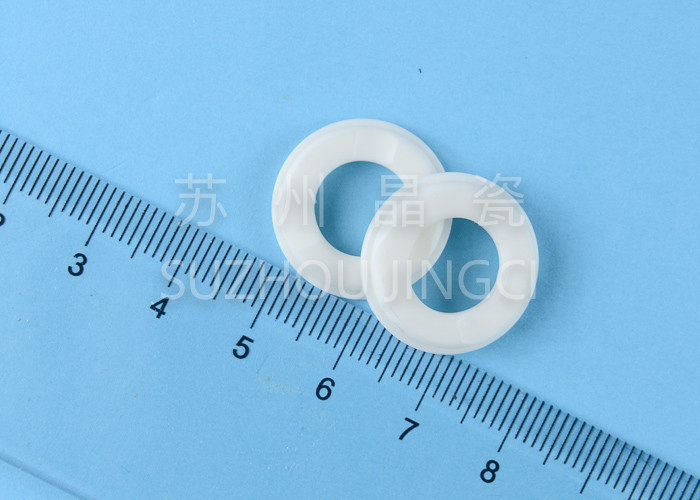

Circulating Alumina Al2o3 96% Ceramic Pump Seal

Certification
China suzhou jingci super hard materials co.,Ltd certification
I'm Online Chat Now

Circulating Alumina Al2o3 96% Ceramic Pump Seal

Circulating Alumina Al2o3 96% Ceramic Pump Seal
Circulating Alumina Al2o3 96% Ceramic Pump Seal

Large Image :  Circulating Alumina Al2o3 96% Ceramic Pump Seal

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: RoHS
Model Number: JCMF007
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 30000pcs per 45 days

Circulating Alumina Al2o3 96% Ceramic Pump Seal

Description
Name: Ceramic Seal Ring Material: Al2o3
Color: White Or Black Density: Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3
Vickers Hardness: Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV Fracture Toughness: Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2)
Compressive Strength: Alumina >3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103);Silicon Carbon 2200 (Mpa Psi*103) Usage: Circulating
High Light:

96% Ceramic Pump Seal

,

Al2o3 Ceramic Pump Seal

,

Al2o3 Ceramic Seal ring

96% Alumina Ceramic Pump Seal Ring Pump Component Circulating Pump Anti-corrosion



Introduction



The ceramic face seal ring is to plug the gap between the housing and the rotating shaft so tightly that no liquid or gas may escape. This leakproof seal is achieved by means of a rotating sealing surface at the point of shaft entry. With their outstanding thermal conductivity, low heat expansion coefficient and high Young's modulus, high-performance ceramics minimize any deformation to the face seal or packing ring under mechanical and thermal loads. Alongside such resistance to corrosive media it is the tribological properties of the sealing system that figure predominantly in the selection of material. The important factor is whether or not the seal gap is lubricated by a fluid medium (be it liquid or gas). For this reason there is standard combination of materials. If there is lubrication in the system, ceramic to ceramic matings are possible. In other instances, one of the two componentsmust possess lubricating properties. One well proven combination consists of ceramics to carbon graphite.



Detailed Product Description

Ceramic 95%
  Alumina
Fundamental properties High hardness, good wear resistance under abrasion,low electrical conductivity,good value for money
Main component 95% Al2O3
Gross density 3.7g/cm^3
Flexural Strength 400 Mpa (Psi*103)
Compressive Strength 3100Mpa (Psix103)
Fracture Toughness 5 Mpa m1/2
Young’s Modulus (dynamic)/Elasticity Modules 300 Gpa
Vickers Hardness 1500-2200 HV
Thermal Conductivity 28 W/mK
Coefficient of Linear Expansion
(20–400°C)
7.5 10^–6 K–1
Maximum Operating Temperature 1400 ℃
Thermal Expanding Coefficient 7.5 (1x10^-6/℃)
Thermal Shock Resistance 250℃ Tc
Disruptive Strength KV/mm,DC ≥20
Acid Resistance mg/cm^2 ≤0.7
Alkali Resistance mg/cm^2 ≤0.2
Wear Resistance g/cm^2 ≤0.1
Dielectric Strength 9.0 εr(20℃ ,1MHz)
Dielectric Constant 9.2 1MHz 25°
Tensile Strength 51KN
Volume Resistivity >10^15 100°
Water Absorption 0
Specific Heat Capacity 0.78x10^3 J/(kg.K)



Advantages of zirconia parts:



·High wear, heat, pressure, and chemical attack resistance (gas and liquids)

·Extreme hardness

·Excellent electrical insulation

·Relatively lightweight



Application:



Because zirconia has good properties of elasticity module and high hardness, as well as the above good properties, the parts made from zirconia are often used as mechanical or pump seal plate or disc.
