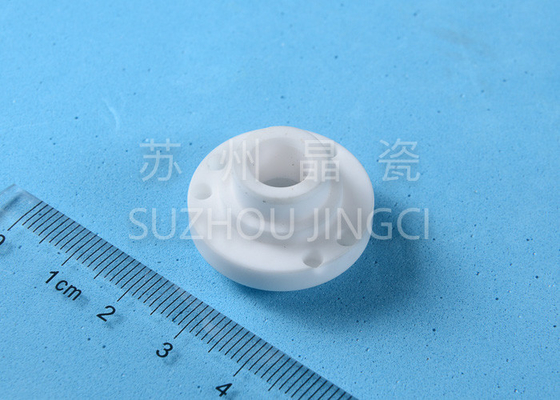

Low Friction Al2O3 2200HV Ceramic Pump Seal For Machinery

Low Friction Al2O3 2200HV Ceramic Pump Seal For Machinery
Low Friction Al2O3 2200HV Ceramic Pump Seal For Machinery

Large Image :  Low Friction Al2O3 2200HV Ceramic Pump Seal For Machinery

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: RoHS
Model Number: JCMF007
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 30000pcs per 45 days

Low Friction Al2O3 2200HV Ceramic Pump Seal For Machinery

Description
Name: Ceramic Mechanical Seal Usage: Machinery
Color: As Picture Feature: Low Friction
Vickers Hardness: Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV Fracture Toughness: Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2)
Compressive Strength: Alumina >3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103);Silicon Carbon 2200 (Mpa Psi*103) Thermal Expending Coefficient: Alumina 7.8-8.2 (1*10^-6/℃);Silicon Carbon ≈4.5 (1*10^-6/℃)
High Light:

2200HV Ceramic Pump Seal

,

Al2O3 Ceramic Pump Seal

,

Al2O3 ceramic mechanical seal

Alumina Ceramic Seal Component for Machinery



Usage



1. Mechanical Seal

2. Heat Exchanger

3. Armour Plate

4. Ball Vlave Parts

5. Pump Components

6. Semiconductor

7. Metallurgical Engineering

8. Fixed and Moving Turbine Components



Detailed Product Description




Ceramic 95%
  Alumina
Fundamental properties High hardness, good wear resistance under abrasion,low electrical conductivity,good value for money
Main component 95% Al2O3
Gross density 3.7g/cm^3
Flexural Strength 400 Mpa (Psi*103)
Compressive Strength 3100Mpa (Psix103)
Fracture Toughness 5 Mpa m1/2
Young’s Modulus (dynamic)/Elasticity Modules 300 Gpa
Vickers Hardness 1500-2200 HV
Thermal Conductivity 28 W/mK
Coefficient of Linear Expansion
(20–400°C)
7.5 10^–6 K–1
Maximum Operating Temperature 1400 ℃
Thermal Expanding Coefficient 7.5 (1x10^-6/℃)
Thermal Shock Resistance 250℃ Tc
Disruptive Strength KV/mm,DC ≥20
Acid Resistance mg/cm^2 ≤0.7
Alkali Resistance mg/cm^2 ≤0.2
Wear Resistance g/cm^2 ≤0.1
Dielectric Strength 9.0 εr(20℃ ,1MHz)
Dielectric Constant 9.2 1MHz 25°
Tensile Strength 51KN
Volume Resistivity >10^15 100°
Water Absorption 0
Specific Heat Capacity 0.78x10^3 J/(kg.K)

Advantages of zirconia parts:



·High wear, heat, pressure, and chemical attack resistance (gas and liquids)

·Extreme hardness

·Excellent electrical insulation

·Relatively lightweight



Application:



Because zirconia has good properties of elasticity module and high hardness, as well as the above good properties, the parts made from zirconia are often used as mechanical or pump seal plate or disc.
