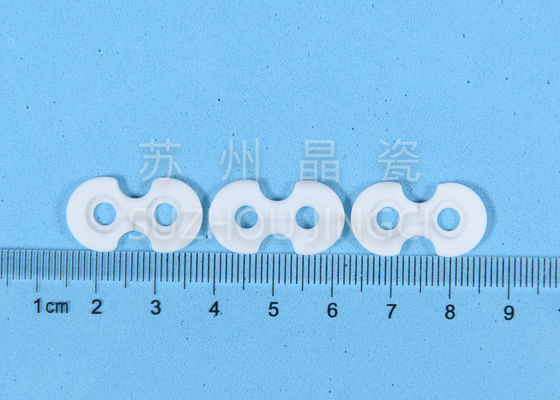

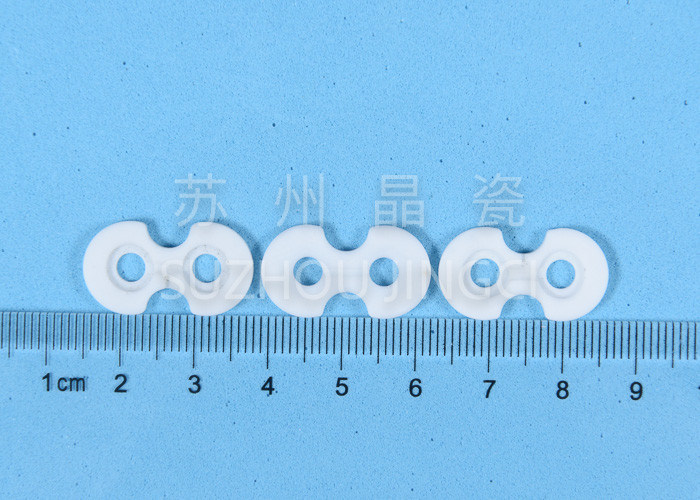

Automobile White Zirconia 6g/Cm3 1000Mpa Ceramic Seal Ring

Automobile White Zirconia 6g/Cm3 1000Mpa Ceramic Seal Ring
Automobile White Zirconia 6g/Cm3 1000Mpa Ceramic Seal Ring

Large Image :  Automobile White Zirconia 6g/Cm3 1000Mpa Ceramic Seal Ring

Product Details:
Place of Origin: Suzhou China
Brand Name: Jingci
Certification: RoHS
Model Number: JCMF007
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: carton box 225mm*215mm*225mm
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 30000pcs per 45 days

Automobile White Zirconia 6g/Cm3 1000Mpa Ceramic Seal Ring

Description
Name: Zirconia Ceramic Seal Ring Material: Zirconia
Color: White Density: Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3
Vickers Hardness: Zirconia ≈1300 HV; Silicon Carbon ≈2500HV Fracture Toughness: Zirconia 7 (Mpa M1/2)
Compressive Strength: Zirconia ≈3900 (Mpa Psi*103);Silicon Carbon 2200 (Mpa Psi*103) Thermal Expending Coefficient: Alumina 7.8-8.2 (1*10^-6/℃);Silicon Carbon ≈4.5 (1*10^-6/℃)
High Light:

1000Mpa Ceramic Seal Ring

,

6g/Cm3 Ceramic Seal Ring

,

6g/Cm3 ceramic mechanical seal

Ceramic Pump Seal Part White Zirconia Ceramic Automobile Pump Component Mechanical Seal part Anti-abrasion



Introduction



1. High Hardness, Out Standing Wear Resistance

2. High Strength Over A Wide Temperature Range

3. Excellent Thermal Shock Resistance

4. Excellent Oxidation Resistance

5. Very Low Friction Coefficient

6. Low Thermal Expansion and High Thermal Conductivity



Detailed Product Description

zirconia

Fundamental properties High hardness, good wear resistance under abrasion,low electrical conductivity,good value for money
Main component zirconia
Gross density 6g/cm^3
Flexural Strength 1000 Mpa (Psi*103)
Compressive Strength 3900Mpa (Psix103)
Fracture Toughness 7 Mpa m1/2
Young’s Modulus (dynamic)/Elasticity Modules 205 Gpa
Vickers Hardness 1300 HV0.5
Thermal Conductivity 4 W/mK
Coefficient of Linear Expansion
(20–400°C)
10 10^–6/℃
Maximum Operating Temperature 1200 ℃
Thermal Expanding Coefficient 10 (1x10^-6/℃)
Thermal Shock Resistance 270℃ Tc
Disruptive Strength KV/mm,DC ≥20
Acid Resistance mg/cm^2 ≤0.7
Alkali Resistance mg/cm^2 ≤0.2
Wear Resistance g/cm^2 ≤0.1
Dielectric Strength
Dielectric Constant
Tensile Strength
Volume Resistivity >10^15 100°
Water Absorption 0
Specific Heat Capacity

Advantages of zirconia parts:



·High wear, heat, pressure, and chemical attack resistance (gas and liquids)

·Extreme hardness

·Excellent electrical insulation

·Relatively lightweight



Application:



Because zirconia has good properties of elasticity module and high hardness, as well as the above good properties, the parts made from zirconia are often used as mechanical or pump seal plate or disc.
